CBB60 6uf to 100uf 500v run capacitor for single phase induction motor
CBB60 6uf to 100uf 500v run capacitor for single phase induction motor
Products Details:
其他信息
| Brand | ZOZHI |
|---|---|
| Products Name | OPHS Series Motors |
| Country of Origin | Fujian China |
| Certification | ISO,CE,CCC |

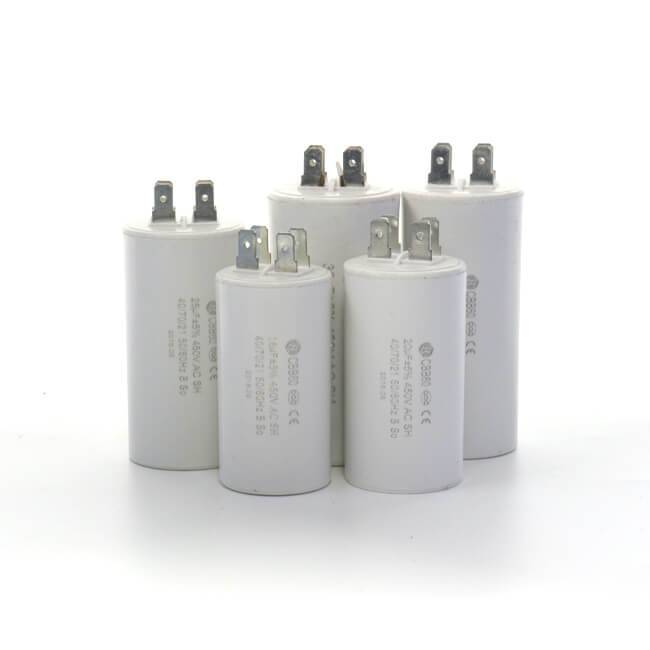

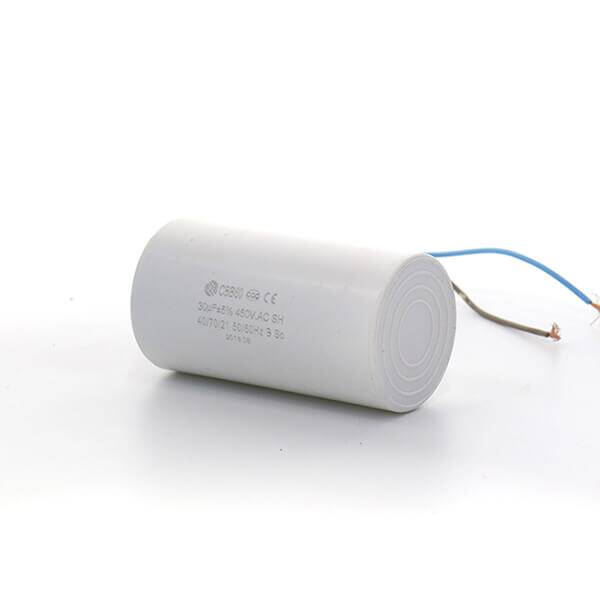

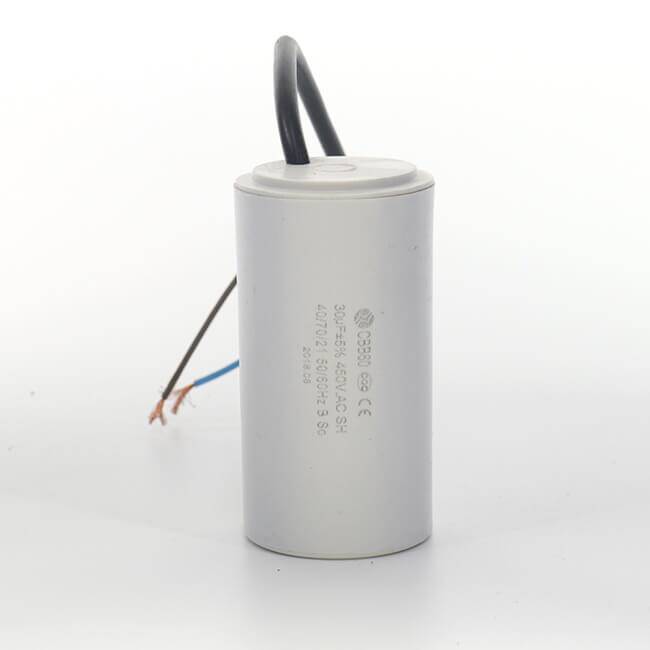

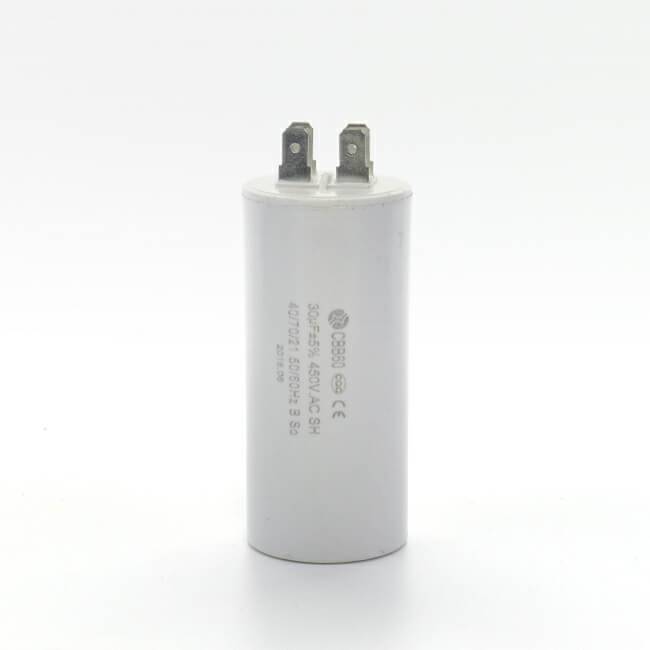

CBB60 6uf to 100uf 500v run capacitor for single phase induction motor
Applications:
CBB60 capacitors apply to all AC single-phase motors, such as water pumps, AC motors, washing machines, cleaning machines, house power motors, etc.
Features:
High-quality polypropylene film, epoxy filling, plastic housing(PP, ABS, PCT), High insulation resistance, long life. Self-healing properties, anti-striking current.
Technique data:
– Rated Capacitance: 1-180uF
– Rated Voltage: 250VAC~450VAC
– Rated Frequency: 50Hz~60Hz
– Capacitance Tolerance: ±5%
– Climate Type: 40/70/21; 25/85/21; 40/85/21
– Loss Tangent: tgδ≤0.002 (100Hz, 20℃)
– Testing Voltage(T-T): 2Un, 2s(routine test) without breakdown
– Testing Voltage(T-C): 1000VAC+2Un, 2s(routines test)without breakdown
– Life Class: Class B; C
– Voluntary Standards: GBT3667.1, EN60252, IEC60252.1, UL810
CBB60 run capacitor data
| Rate Capacitor(uf) | Rate voltage 250-350v | Rate voltage 400-500v | ||
|---|---|---|---|---|
| D(mm) | H(mm) | D(mm) | H(mm) | |
| 6 | 28 | 60 | 32 | 60 |
| 8 | 28 | 60 | 32 | 60 |
| 10 | 28 | 60 | 34 | 60 |
| 12 | 28 | 60 | 34 | 60 |
| 14 | 32 | 60 | 34 | 60 |
| 16 | 32 | 60 | 38 | 70 |
| 20 | 34 | 60 | 40 | 70 |
| 25 | 34 | 60 | 42 | 70 |
| 30 | 40 | 70 | 42 | 90 |
| 35 | 42 | 90 | 45 | 90 |
| 40 | 45 | 90 | 50 | 90 |
| 45 | 45 | 90 | 50 | 90 |
| 50 | 50 | 90 | 50 | 100 |
| 55 | 50 | 90 | 50 | 100 |
| 60 | 50 | 90 | 50 | 100 |
| 70 | 50 | 100 | 55 | 115 |
| 80 | 50 | 100 | 55 | 115 |
| 90 | 50 | 100 | 55 | 115 |
| 100 | 55 | 115 | 55 | 115 |
