Hollow Shaft Electric Motor For Hydraulic Pumps OPSH Series
Hollow Shaft Electric Motor For Hydraulic Pumps OPSH Series
Products Details:
其他信息
| Brand | ZOZHI |
|---|---|
| Products Name | OPHS Series Motors |
| Country of Origin | Fujian China |
| Certification | ISO,CE,CCC |
| Payment & Shipping Terms | |
|---|---|
| Price Quote | Negotiation |
| Minimum Order | 10pcs |
| Average Delivery Time | 25days |
| Payment Method | TT, westerm union,Credit cards,Alipay |
| Package Details | Carton or veneer case |
| Ability to Supply | 60000pcs per month |
| Technical Characteristics | |
|---|---|
| Products | OPHS Hollow Shaft Motor |
| Output Range | 1HP-10HP |
| Application | Hydraulic pump |
| Standard | IEC 60034-1 |
| Phase | Single or 3 phase |
| Insulation Class | F |
| Degree of Protection | IP55 |
| Service Factor | 1.00 |
| Temperature Rise | 80 K |
| Ambient temperature | -15℃≤θ≤40℃ |
| Mounting | customer requested |
| Frame Material | Aluminum |
| Standard Bearing Brand | C&U |

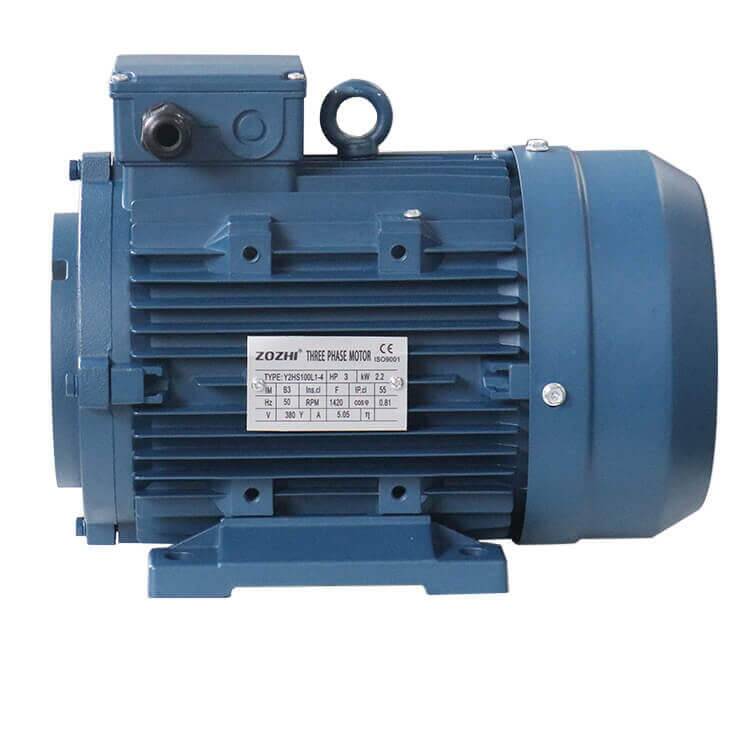

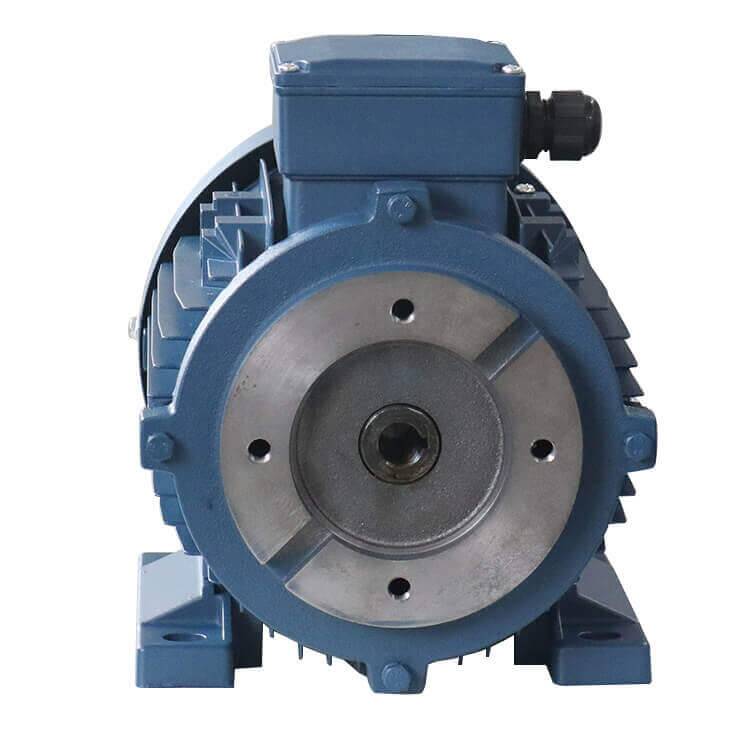

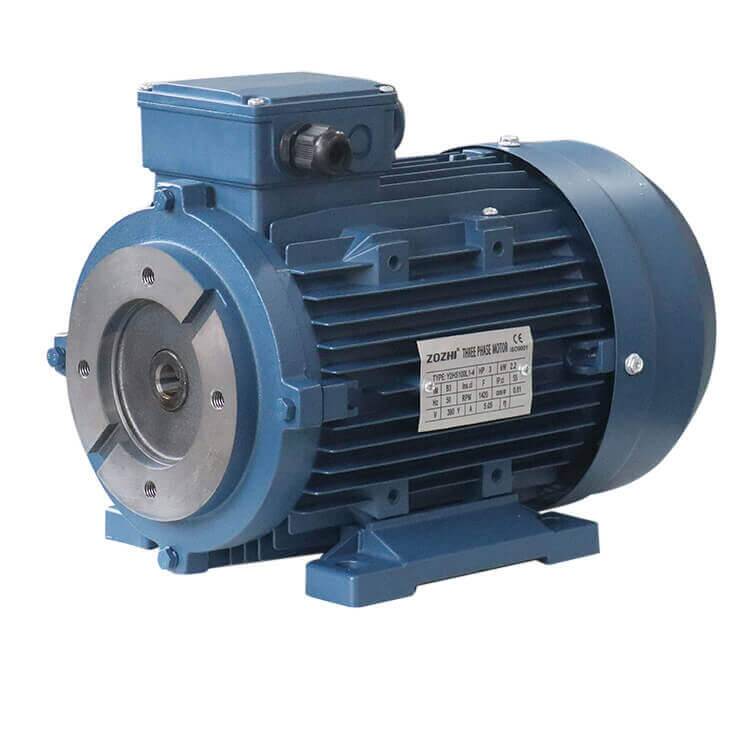

Hollow Shaft Electric Motor For Hydraulic Pumps OPSH Series
ZOZHI Hollow Shaft Motor OPHS series is extensively used for industrial, agricultural, and other commercial applications. This Hollow Shaft Motor is fabricated using premium quality raw materials. This shaft motor provides smooth and stable functionality under voltage fluctuations. The robust construction of the shaft motor offers high tensile strength to perform for a longer time. This shaft motor is easy to install and requires minimal maintenance. This finely finished motor is available in different sizes as per the requirement.
Picture of the production line
OPHS SERIES Technical Data
| Model | Rated Output | Rated Current | Rated Speed | Eff | Power Factor | Starting Current | Ts/tn | Tmax/Tn | Axis Bore | Axis Key height | Bore Depth | Front Cover | Oil Pump Fixed Position | Oil Pump Model | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HP | KW | A | r/min | % | cos¦µ | times | times | ¦µxKey | C | E | halt¦µ | Screw Hole Distance | Model | ||
| OPHS802-4 | 1 | 0.75 | 2 | 1390 | 74.5 | 0.76 | 6.0 | 2.3 | 2.3 | 12.7x3.2 | 14.35 | 35 | 82.55 | 106.3 M10 | VP20,VP12,VP12/20 |
| OPHS802-4 | 1 | 0.75 | 2 | 1390 | 74.5 | 0.76 | 6.0 | 2.3 | 2.3 | 10.15x7tooth | ¦µ13.65 | 35 | 82.55 | 106.3 M10 | VP20,7Spline tooth key |
| OPHS802-4 | 1 | 0.75 | 2 | 1390 | 74.5 | 0.76 | 6.0 | 2.3 | 2.3 | 12.4x9tooth | ¦µ16.35 | 35 | 82.55 | 106.3 M10 | VP20,9Spline tooth key |
| OPHS802-4 | 1 | 0.75 | 2 | 1390 | 74.5 | 0.76 | 6.0 | 2.3 | 2.3 | 12x4 | 13.7 | 28 | 50.8 | 82.55M8 | HGP-1A |
| OPHS802-4 | 1 | 0.75 | 2 | 1390 | 74.5 | 0.76 | 6.0 | 2.3 | 2.3 | 15.875x4 | 17.7 | 32 | 82.55 | 106.3 M10 | HGP-3A |
| OPHS90L-4 | 2 | 1.5 | 3.7 | 1400 | 79 | 0.79 | 6.5 | 2.3 | 2.3 | 12.5x4 | 14 | 35 | 50.8 | 63.5x63.5 M8 | GPY,HGP-2A |
| OPHS90L-4 | 2 | 1.5 | 3.7 | 1400 | 79 | 0.79 | 6.5 | 2.3 | 2.3 | 12x4 | 13.7 | 28 | 50.8 | 82.55 M8 | HGP-1A |
| OPHS90L-4 | 2 | 1.5 | 3.7 | 1400 | 79 | 0.79 | 6.5 | 2.3 | 2.3 | 12.7x3.2 | 14.35 | 35 | 82.55 | 106.3 M10 | VP20,VP12/15 |
| OPHS90L-4 | 2 | 1.5 | 3.7 | 1400 | 79 | 0.79 | 6.5 | 2.3 | 2.3 | 10.15x7³Ý | ¦µ13.65 | 35 | 82.55 | 106.3 M10 | VP20,7Spline tooth key |
| OPHS90L-4 | 2 | 1.5 | 3.7 | 1400 | 79 | 0.79 | 6.5 | 2.3 | 2.3 | 12.4x9³Ý | ¦µ16.35 | 35 | 82.55 | 106.3 M10 | VP20,9Spline tooth key |
| OPHS90L-4 | 2 | 1.5 | 3.7 | 1400 | 79 | 0.79 | 6.5 | 2.3 | 2.3 | 16x5 | 18 | 37 | 38 | 70x100 MB | CBN CBT |
| OPHS90L-4 | 2 | 1.5 | 3.7 | 1400 | 79 | 0.79 | 6.5 | 2.3 | 2.3 | 19.05x4.76 | 21.25 | 36 | 95.02 | 90x90 M10 | VP30,VP40 |
| OPHS90L-4 | 2 | 1.5 | 3.7 | 1400 | 79 | 0.79 | 6.5 | 2.3 | 2.3 | 15.875x4 | 17.7 | 34 | 82.55 | 106.3 M10 | HGP-3A |
| OPHS100L-4 | 3 | 2.2 | 5 | 1430 | 81 | 0.82 | 7.0 | 2.2 | 2.3 | 12.5x4 | 14 | 35 | 50.8 | 63.5x63.5 M8 | GPY HGP-2A |
| OPHS100L-4 | 3 | 2.2 | 5 | 1430 | 81 | 0.82 | 7.0 | 2.2 | 2.3 | 19.05x4.76 | 21.25 | 38 | 82.55 | 106 M10 | PV2R1 |
| OPHS100L-4 | 3 | 2.2 | 5 | 1430 | 81 | 0.82 | 7.0 | 2.2 | 2.3 | 19.05x4.76 | 21.25 | 36 | 95.02 | 90X90 M10 | VP30,VP40 |
| OPHS100L-4 | 3 | 2.2 | 5 | 1430 | 81 | 0.82 | 7.0 | 2.2 | 2.3 | 16X5 | 18 | 37 | 38 | 70X100 MB | CBN CBT |
| OPHS100L-4 | 3 | 2.2 | 5 | 1430 | 81 | 0.82 | 7.0 | 2.2 | 2.3 | 12.7x3.2 | 14.35 | 35 | 82.55 | 106.3 M10 | VP20,VP12/15 |
| OPHS100L-4 | 3 | 2.2 | 5 | 1430 | 81 | 0.82 | 7.0 | 2.2 | 2.3 | 15.875x4 | 17.7 | 34 | 82.55 | 106.3 M10 | HGP-3A |
| OPHS100L-4 | 3 | 2.2 | 5 | 1430 | 81 | 0.82 | 7.0 | 2.2 | 2.3 | 18x6 | 18 | 37 | 38.00 | 70X100 MB | CBN CBT |
| OPHS100L-4 | 3 | 2.2 | 5 | 1430 | 81 | 0.82 | 7.0 | 2.2 | 2.3 | 19.05x4.76 | 21.25 | 38 | 82.55 | 106 M10 | PV2R1 |
| OPHS112M-4 | 5.5 | 4 | 8.8 | 1440 | 84.5 | 0.82 | 7.0 | 2.2 | 2.3 | 12.5x4 | 14 | 35 | 50.8 | 63.5x63.5 M8 | GPY HGP-2A |
| OPHS112M-4 | 5.5 | 4 | 8.8 | 1440 | 84.5 | 0.82 | 7.0 | 2.2 | 2.3 | 15.875x4 | 17.7 | 34 | 82.55 | 106.3 M10 | HGP-3A |
| OPHS112M-4 | 5.5 | 4 | 8.8 | 1440 | 84.5 | 0.82 | 7.0 | 2.2 | 2.3 | 16x5 | 18 | 37 | 38.00 | 70x100 MB | CBN CBT |
| OPHS112M-4 | 5.5 | 4 | 8.8 | 1440 | 84.5 | 0.82 | 7.0 | 2.2 | 2.3 | 19.05x4.76 | 21.25 | 38 | 82.55 | 106 M10 | PV2R1,FA1 |
| OPHS112M-4 | 5.5 | 4 | 8.8 | 1440 | 84.5 | 0.82 | 7.0 | 2.2 | 2.3 | 19.05x4.76 | 21.25 | 36 | 95.02 | 90x90 M10 | VP-30 VP-40 |
| OPHS112M-4 | 5.5 | 4 | 8.8 | 1440 | 84.5 | 0.82 | 7.0 | 2.2 | 2.3 | 22x5 | 24 | 50 | 96 | 90x90 M10 | 50T |
| OPHS112M-4 | 5.5 | 4 | 8.8 | 1440 | 84.5 | 0.82 | 7.0 | 2.2 | 2.3 | 11.4x4 | ¦µ15-4tooth | 37 | 38.00 | 70x100 MB | CBN 4Spline |
| OPHS132S-4 | 7.5 | 5.5 | 11.8 | 1440 | 85.5 | 0.84 | 7.0 | 2.2 | 2.3 | 22x5 | 24 | 50 | 96 | 90x90 M10 | 50T-F |
| OPHS132S-4 | 7.5 | 5.5 | 11.8 | 1440 | 85.5 | 0.84 | 7.0 | 2.2 | 2.3 | 16x5 | 18 | 37 | 38.00 | 70x100 MB | CBN CBT |
| OPHS132S-4 | 7.5 | 5.5 | 11.8 | 1440 | 85.5 | 0.84 | 7.0 | 2.2 | 2.3 | 12.5x4 | 14 | 35 | 50.8 | 63.5x63.5 M8 | GPY HGP-2A |
| OPHS132S-4 | 7.5 | 5.5 | 11.8 | 1440 | 85.5 | 0.84 | 7.0 | 2.2 | 2.3 | 15.875x4 | 17.7 | 34 | 82.55 | 106.3 M10 | HGP-3A |
| OPHS132S-4 | 7.5 | 5.5 | 11.8 | 1440 | 85.5 | 0.84 | 7.0 | 2.2 | 2.3 | 19.05x4.76 | 21.25 | 38 | 82.55 | 106 M10 | PV2R1,FA1 |
| OPHS132S-4 | 7.5 | 5.5 | 11.8 | 1440 | 85.5 | 0.84 | 7.0 | 2.2 | 2.3 | 25.4x6.35 | 28.2 | 50 | 101.6 | ¦µ146 M12 | T6B PV2R2 |
| OPHS132S-4 | 7.5 | 5.5 | 11.8 | 1440 | 85.5 | 0.84 | 7.0 | 2.2 | 2.3 | 30x8(7) | 33 | 48 | 160 | ¦µ187 M12 | 150T |
| OPHS132M-4 | 10 | 7.5 | 15.6 | 1440 | 87 | 0.85 | 7.0 | 2.2 | 2.3 | 15.875x4 | 17.7 | 34 | 82.55 | 106.3 M10 | HGP-3A |
| OPHS132M-4 | 10 | 7.5 | 15.6 | 1440 | 87 | 0.85 | 7.0 | 2.2 | 2.3 | 19.05x4.76 | 21.5 | 38 | 82.55 | 106 M10 | PV2R1 FA |
| OPHS132M-4 | 10 | 7.5 | 15.6 | 1440 | 87 | 0.85 | 7.0 | 2.2 | 2.3 | 22.23x6.35 | 25.08 | 35 | 101.6 | 146 M12 | T6C |
| OPHS132M-4 | 10 | 7.5 | 15.6 | 1440 | 87 | 0.85 | 7.0 | 2.2 | 2.3 | 25.4x6.35 | 28.2 | 50 | 101.6 | 146 M12 | T6B PV2R2 |
| OPHS132M-4 | 10 | 7.5 | 15.6 | 1440 | 87 | 0.85 | 7.0 | 2.2 | 2.3 | 30x8(7) | 33 | 48 | 160 | ¦µ187 M12 | 150T |
| OPHS132M-4 | 10 | 7.5 | 15.6 | 1440 | 87 | 0.85 | 7.0 | 2.2 | 2.3 | 22.23x4.76 | 24.5 | 52 | 101.6 | 146 M12 | S25V(S20V)25VQ |
