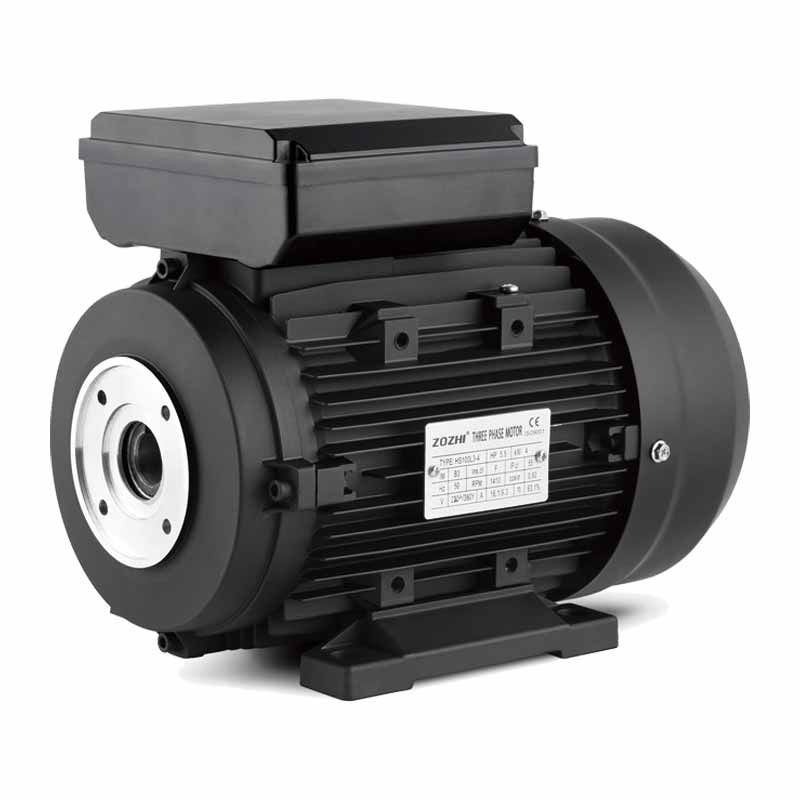

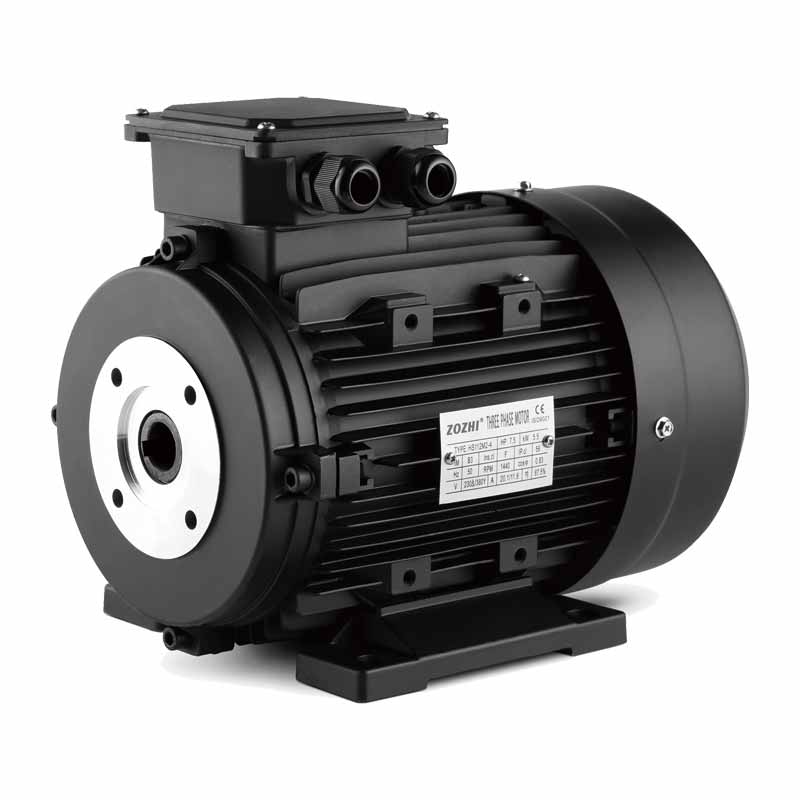

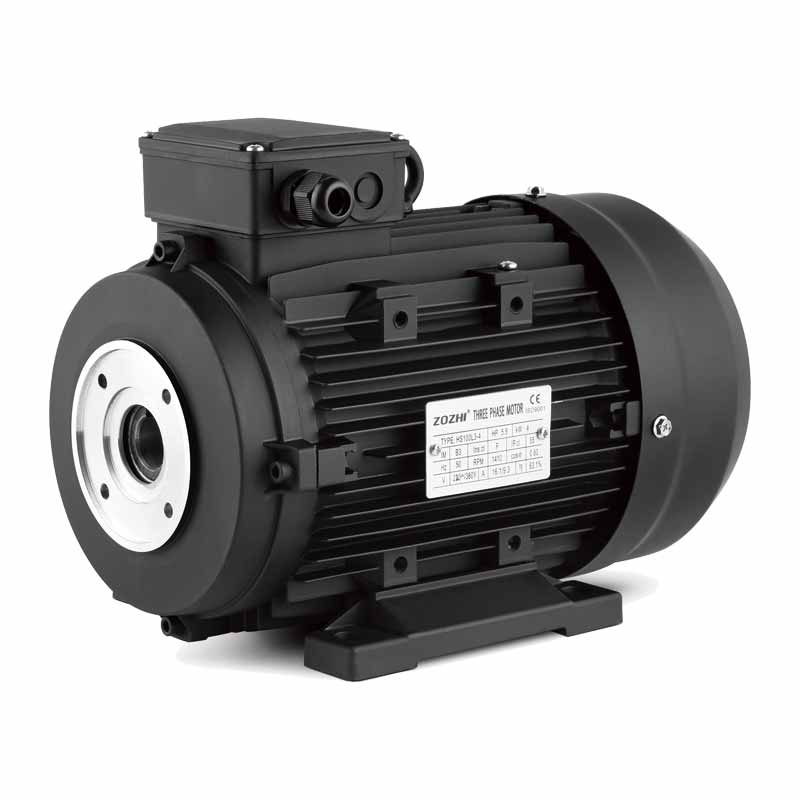

HS112M2-4 7.5hp 5.5kw 3 phase hollow shaft electric motor for washing machine

Products Details:

其他信息

Brand

ZOZHI

Products Name

HS Series Motors

Country of Origin

Fujian China

Certification

ISO,CE,CCC

Zozhi motor is not only committed to providing the suitable assembling size for your washing machine but more importantly, represents the attitude toward the responsibility in the improvement of hollow shaft electric motor performance.

HS112M2-4 7.5hp 5.5kw 3 phase hollow shaft electric motor for washing machine Item   No.: HS112M2-4
Commodity: 3 Phase hollow   shaft electric motor
Application: washing machine
Power: 7.5HP/5.5KW
Voltage: 400v
Frequency: 50hz
Speed: 1400 RPM
Efficiency: 87.37% Over IE2
Flange   size M/N: 87/61mm or   75/90mm
Flange   material Aluminum/Cast Iron
Bearing C&U Two   bearings(flant and end)
Packing: CTNS
Carton   Size: 36x24x32 cm
Carton   Quantity: 1
Gross/Net   Weight: 33/32 kgs
Warranty: One Year

High efficiency performance competitive price

Efficiency of HS112M2-4 7.5hp 5.5kw 3 phase hollow shaft electric motor is 87.37% over IE2 standard. but zozhi company keep same price as IE1. It is really a very cost-effective product, hurry up and order it.

Application

HS112M2-4 7.5hp 5.5kw 3 phase hollow shaft electric motor is a new type of motor with an internal joint designed for high-pressure pumps. It reduces the overall size of the hollow shaft and maintains all the technical and maintenance advantages of a standard motor. It adopts a new technology design, 100% copper wiring, C&U bearing, shaft extension through high-frequency quenching treatment, significantly improving mechanical strength, low-temperature rise, fast heat dissipation, high efficiency, energy-saving. In addition, it is connected to the pump for high-pressure water column cleaning.

Load Test Report

Test Items 150% Load 125% Load 100% Load 75% Load 50% Load 25% Load
1. Load   Current A 16.32 13.52 10.94 8.7 6.9 5.64
2. Input   Power W 9913.18 8044.52 6292.31 4646.48 3096.96 1633.69
3. Slip Ratio % 6.7 5.2 3.9 2.8 1.8 0.9
4. Bross Loss W 612.38 417.33 273.39 173 108.56 72.49
5. Aluminum   Loss W 620.62 397.25 235.15 123.91 53.1 12.34
6.Miscellaneous   Loss W
7.   Efficiency % 80.46 85.45 87.37 88.71 88.89 84.15
8. Power   Factor 0.883 0.858 0.829 0.77 0.648 0.418
9. Output   Power W 8250 6875 5500 4125 2750 1375
10. Michenical   Loss W 23.4 23.4 23.4 23.4 23.4 23.4
11. Iron Loss W 145.6 149.3 152.8 156.3 159.8 163.2

Overall Dimensions

FRAME FLANGE FRAME
M N S A AC B H HC L K
71 75 90 7 112 180 90 71 184 217 7
90L 75/87 90/61 7 140 238 125 90 220 270 9.5
100L 75/87 90/61 9 160 255 140 100 240 315 11
112M 75/87 90/61 9 216 326 140 132 265 330 11
132S 75/87 90/61 9 216 326 140 132 320 370 12
132M 75/87 90/61 9 216 326 178 132 320 409 12
160M 87 61 9 254 360 210 160 410 498 14.5
