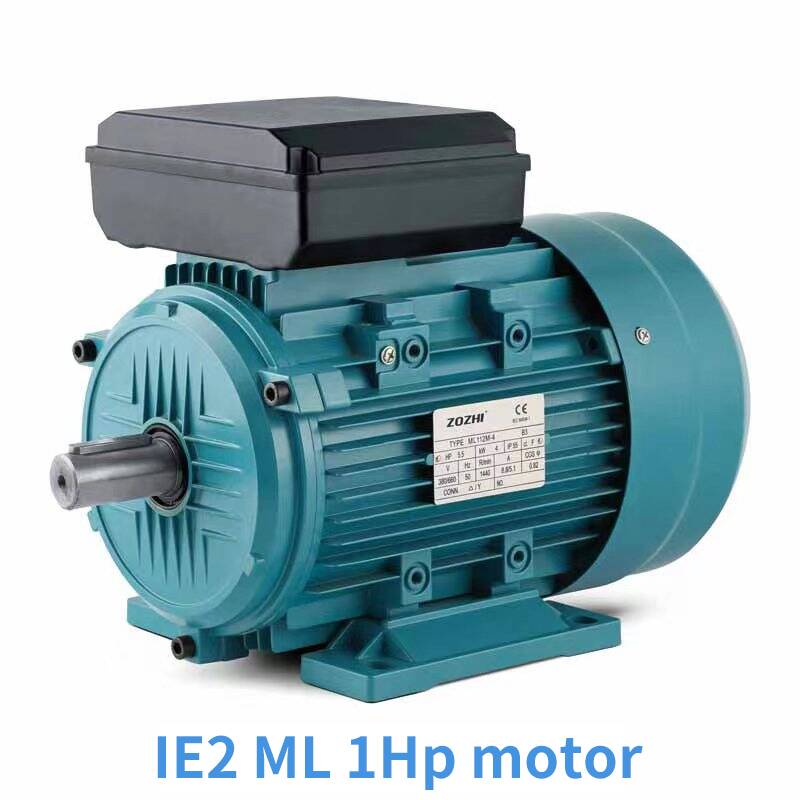

IE2ML single phase motors with starting and running capacitor ideal for a high starting torque machine
IE2ML single phase motors with starting and running capacitor ideal for a high starting torque machine
Products Details:
其他信息
| Brand | ZOZHI |
|---|---|
| Products Name | ML Series Motors |
| Country of Origin | Fujian China |
| Certification | ISO,CE,CCC |
| Payment & Shipping Terms | |
|---|---|
| Price Quote | Negotiation |
| Minimum Order | 10pcs |
| Average Delivery Time | 25days |
| Payment Method | TT, westerm union,Credit cards,Alipay |
| Package Details | Carton or veneer case |
| Ability to Supply | 60000pcs per month |
| Technical Characteristics | |
|---|---|
| Products | ML TEFC motor |
| Output Range | 0.25HP-5.5HP |
| Application | In industrial,water treatment fields ect. |
| Standard | IEC 60034-1 |
| Phase | Single phase |
| Insulation Class | F |
| Degree of Protection | IP55 |
| Service Factor | 1.00 |
| Temperature Rise | 80 K |
| Ambient temperature | -15℃≤θ≤40℃ |
| Mounting | B3/B14/B15/B34/B35 |
| Frame Material | Aluminum |
| Standard Bearing Brand | C&U |

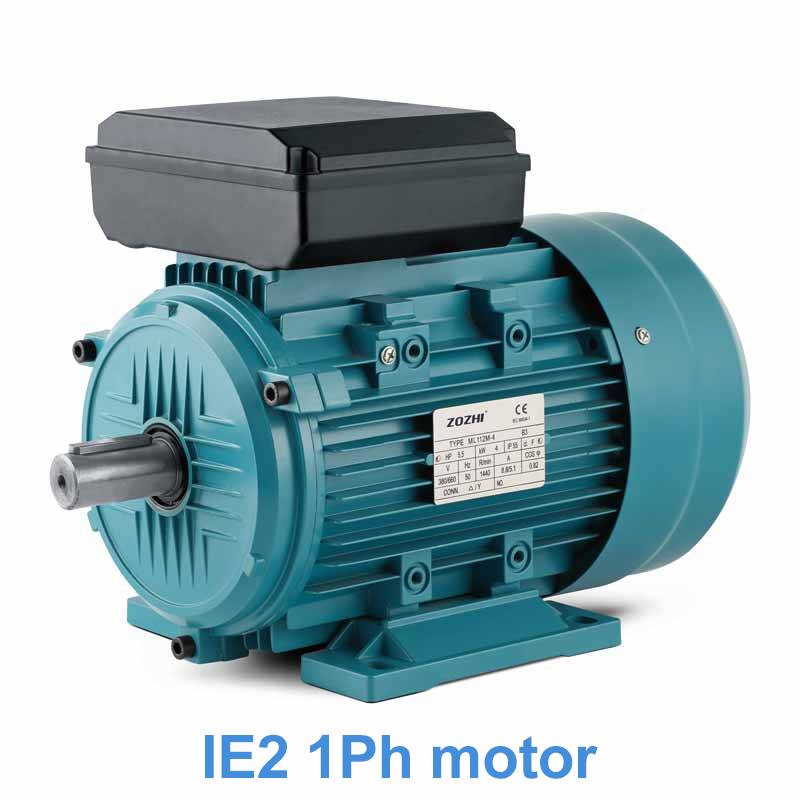

IE2ML series single-phase motor designed specifically to deliver high performance with low levels of vibration and noise. The motor is with starting and running capacitor equipped with an electronic centrifugal switch, ideal for applications requiring a high starting torque machine, such as a multitude of applications in the commercial, industrial, building service, water treatment, and agricultural fields where superior quality and reliability are demanded.
Picture of the production line
IE2ML SERIES Technical Data
| Model | Rated Output | Voltage | Current | Speed | Eff. @Load | Power Factor | Ist | Break down Torque | Net. Weight | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Type | (Hp) | (kW) | (V) | IN(A) | (RPM) | (%) | cosΦ | (A) | Tst/TN | Tmax/TN | kg |
| ML631-2 | 0.25 | 0.18 | 230 | 1.43 | 2800 | 60 | 0.92 | 7 | 1.8 | 1.8 | 3.9 |
| ML632-2 | 0.34 | 0.25 | 230 | 1.91 | 2800 | 63 | 0.92 | 10 | 1.8 | 1.8 | 4.3 |
| ML711-2 | 0.5 | 0.37 | 230 | 2.73 | 2800 | 67 | 0.92 | 16 | 2.3 | 1.8 | 5.8 |
| ML712-2 | 0.75 | 0.55 | 230 | 3.4 | 2800 | 73 | 0.95 | 21 | 2.5 | 1.8 | 6.8 |
| ML801-2 | 1 | 0.75 | 230 | 4.7 | 2800 | 73 | 0.95 | 30 | 2.5 | 1.8 | 9.6 |
| ML802-2 | 1.5 | 1.1 | 230 | 7.02 | 2800 | 75 | 0.95 | 40 | 2.5 | 1.8 | 11.3 |
| ML90S-2 | 2 | 1.5 | 230 | 9.44 | 2800 | 76 | 0.95 | 55 | 2.5 | 1.8 | 13 |
| ML90L-2 | 3 | 2.2 | 230 | 13.67 | 2800 | 77 | 0.95 | 70 | 2.5 | 1.8 | 16 |
| ML100L-2 | 4 | 3 | 230 | 18.2 | 2800 | 79 | 0.95 | 100 | 2.2 | 1.8 | 26 |
| ML112M-2 | 5.5 | 4 | 230 | 22.5 | 2800 | 78 | 0.95 | 120 | 1.8 | 1.8 | |
| ML631-4 | 0.16 | 0.12 | 230 | 1.24 | 1400 | 55 | 0.9 | 6 | 1.8 | 1.8 | 4.1 |
| ML632-4 | 0.25 | 0.18 | 230 | 1.43 | 1400 | 56 | 0.9 | 8 | 1.8 | 1.8 | 4.9 |
| ML711-4 | 0.34 | 0.25 | 230 | 1.99 | 1400 | 62 | 0.92 | 12 | 2.5 | 1.8 | 5.8 |
| ML712-4 | 0.5 | 0.37 | 230 | 2.81 | 1400 | 65 | 0.92 | 16 | 2.5 | 1.8 | 6.8 |
| ML801-4 | 0.75 | 0.55 | 230 | 3.6 | 1400 | 69 | 0.92 | 21 | 2.5 | 1.8 | 9.1 |
| ML802-4 | 1 | 0.75 | 230 | 5.22 | 1400 | 71 | 0.95 | 25 | 2.5 | 1.8 | 10.4 |
| ML90S-4 | 1.5 | 1.1 | 230 | 6.9 | 1400 | 72 | 0.95 | 40 | 2.5 | 1.8 | 13 |
| ML90L-4 | 2 | 1.5 | 230 | 9.3 | 1400 | 74 | 0.95 | 50 | 2.5 | 1.8 | 16 |
| ML100L1-4 | 3 | 2.2 | 230 | 13.9 | 1400 | 76 | 0.95 | 80 | 2.5 | 1.8 | 26 |
| ML100L2-4 | 4 | 3 | 230 | 17.6 | 1400 | 78 | 0.95 | 100 | 2.5 | 1.8 | 31 |
| ML112M-4 | 5.5 | 4 | 230 | 22 | 1400 | 79 | 0.95 | 130 | 2.5 | 1.8 | 35 |
Installation Dimensions
| Frame Size | Mounting Dimensions (mm) | Overall Dimensions(mm) | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IMB14 | IMB5 | |||||||||||||||||||||||||
| A | B | C | D | E | F | G | H | K | M | N | P | R | S | T | M | N | P | R | S | T | AB | AC | AD | HD | L | |
| 63 | 100 | 80 | 40 | 11 | 23 | 4 | 8.5 | 63 | 7 | 75 | 60 | 90 | 0 | M5 | 2.5 | 115 | 95 | 140 | 0 | 10 | 3 | 120 | 119 | 118 | 181 | 231 |
| 71 | 112 | 90 | 45 | 14 | 30 | 5 | 11 | 71 | 7 | 85 | 70 | 105 | 0 | M6 | 2.5 | 130 | 110 | 160 | 0 | 10 | 3.5 | 132 | 137 | 125 | 196 | 250 |
| 80 | 125 | 100 | 50 | 19 | 40 | 6 | 15.5 | 80 | 10 | 100 | 80 | 120 | 0 | M6 | 3 | 165 | 130 | 200 | 0 | 12 | 3.5 | 160 | 155 | 146 | 226 | 278 |
| 90S | 140 | 100 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | 115 | 95 | 140 | 0 | M8 | 3 | 165 | 130 | 200 | 0 | 12 | 3.5 | 175 | 172 | 151 | 241 | 322 |
| 90L | 140 | 125 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | 115 | 95 | 140 | 0 | M8 | 3 | 165 | 130 | 200 | 0 | 12 | 3.5 | 175 | 172 | 151 | 241 | 352 |
| 100L | 160 | 140 | 63 | 28 | 60 | 8 | 24 | 100 | 12 | 130 | 110 | 160 | 0 | M8 | 3.5 | 215 | 180 | 250 | 0 | 15 | 4 | 198 | 194 | 162 | 262 | 414 |
| 112M | 190 | 140 | 70 | 28 | 60 | 8 | 24 | 112 | 12 | 130 | 110 | 160 | 0 | M8 | 3.5 | 215 | 180 | 250 | 0 | 15 | 4 | 220 | 217 | 186 | 298 | 424 |
