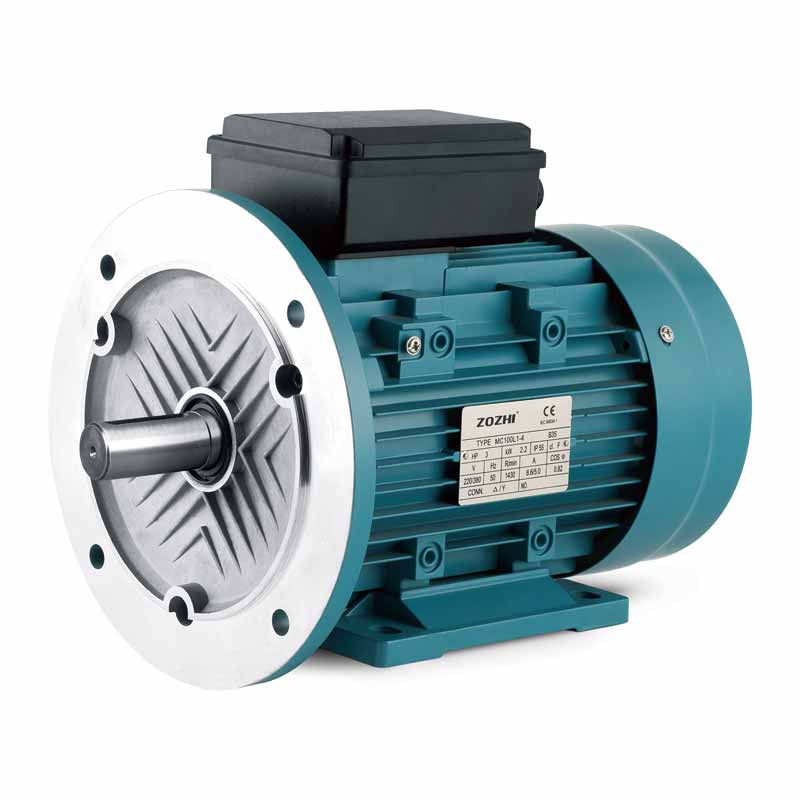

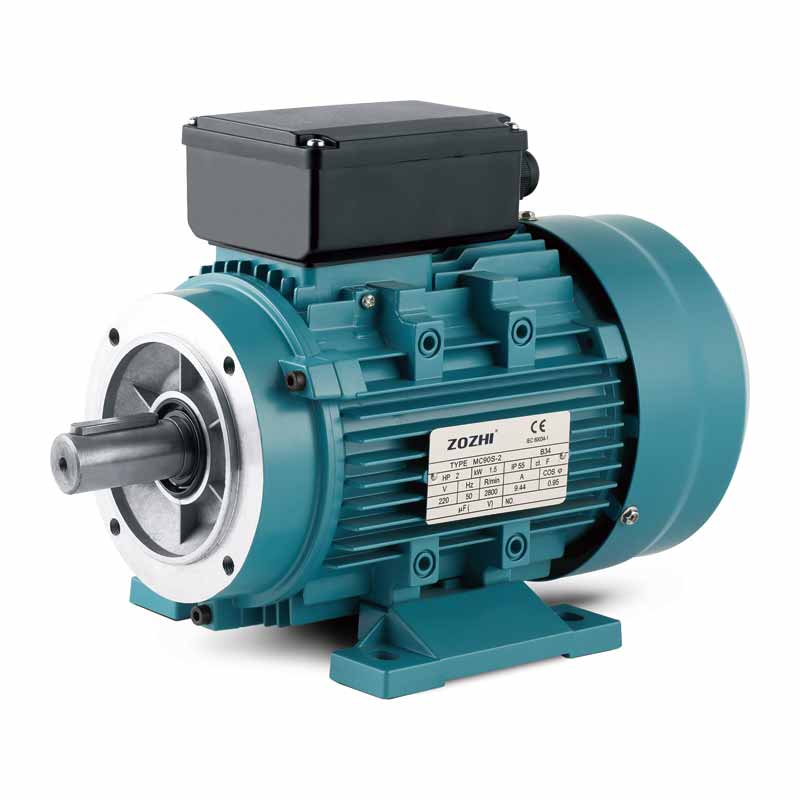

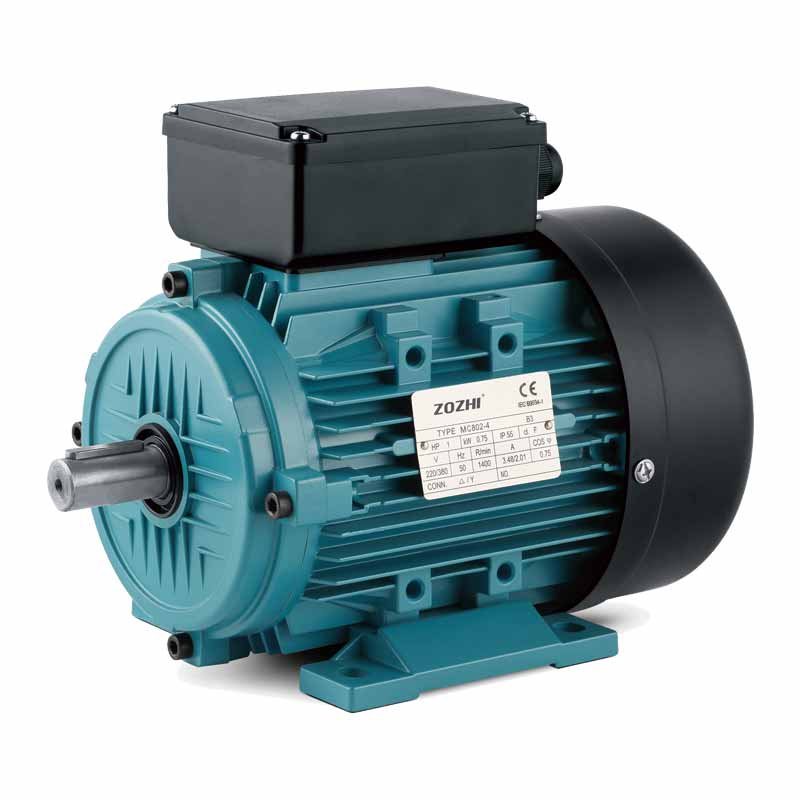

Single-phase Capacitor-start Induction Motors MC Series

Products Details:

其他信息

Brand

ZOZHI

Products Name

MC Series Motors

Country of Origin

Fujian China

Certification

ISO,CE,CCC

Payment & Shipping Terms
Price Quote Negotiation
Minimum Order10pcs
Average Delivery Time25days
Payment MethodTT, westerm union,Credit cards,Alipay
Package DetailsCarton or veneer case
Ability to Supply60000pcs per month
Technical Characteristics
Products MLTEFC motor
Output Range0.25HP-4HP
ApplicationIn industrial,water treatment fields ect.
StandardIEC 60034-1
Phase Single phase
Insulation ClassF
Degree of ProtectionIP55
Service Factor 1.00
Temperature Rise80 K
Ambient temperature-15℃≤θ≤40℃
MountingB3/B14/B15/B34/B35
Frame Material Aluminum
Standard Bearing BrandC&U

Single-phase Capacitor-start Induction Motors MC Series

MC series is superior motors that can be used in many applications in the commercial, industrial, building service, water treatment, and agricultural fields where excellent quality and reliability are demanded.

Picture of the production line

MC SERIES Technical Data

Model Rated Output Voltage CurrentFull Speed Eff. @Load Power Factor For D.O.L StartingMax. Torque Net. Weight
Type(Hp)(kW)(V)IN(A)(RPM)(%)cosΦIst(A)Tst/TNTmax/TN kg
MC711-20.250.182301.892800600.721231.86.5
MC712-20.340.252302.42800640.741531.86.8
MC801-20.50.372303.362800650.77212.81.88.3
MC802-20.750.552304.652800680.79292.81.89
MC90S-210.752306.092800700.8372.51.812.5
MC90L-21.51.12308.682800720.8602.51.814
MC100L1-221.523011.382900740.81802.51.822.5
MC100L1-232.223016.462900750.811202.21.825.5
MC112M-24323021.882900760.821502.21.826
MC711-40.160.122301.881400500.58931.86.5
MC712-40.250.182302.491400530.62122.81.86.7
MC801-40.340.252303.111400580.63152.81.88.9
MC802-40.50.372304.241400620.64212.51.89.6
MC90S-40.750.552305.491400660.69292.51.812.5
MC90L-410.752306.871400680.73372.51.815
MC100L1-41.51.12309.521450710.74602.51.823
MC100L2-421.523012.451450730.75802.51.827
MC112M-432.223017.781450740.761202.21.835





Installation   Dimensions

Frame Size Mounting Dimensions (mm)Overall Dimensions(mm)
IMB14IMB5
ABCDEFGHKMNPRSTMNPRSTABACADHDL
711129045143051171785701050M62.51301101600103.5132137126197250
80125100501940615.58010100801200M631651302000123.5160155149229278
90S1401005624508209010115951400M831651302000123.5175172153243322
90L1401255624508209010115951400M831651302000123.5175172153243352
100L160140632860824100121301101600M83.52151802500154198194165265414
112M190140702860824112121301101600M83.52151802500154220217186298424
