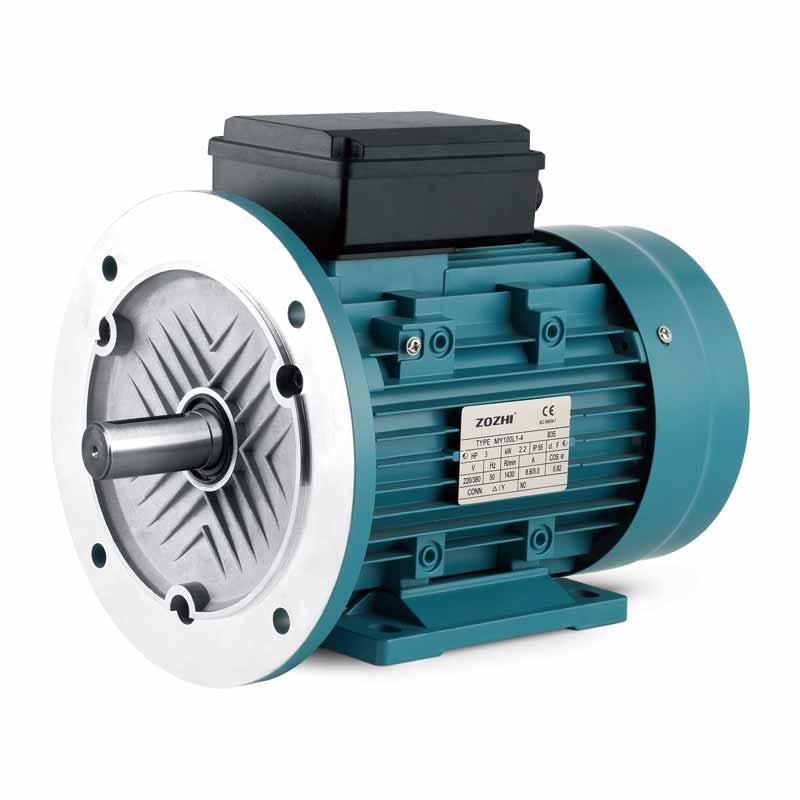

Single phase capacitor-run induction motors MY Series

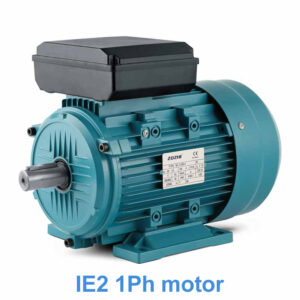

single phase motor

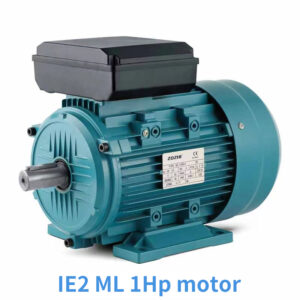

single phase motor

Single phase capacitor-run induction motors MY Series

Products Details:

其他信息

Brand

ZOZHI
Products Name

MY Series Motors
Country of Origin

Fujian China
Certification

ISO,CE,CCC
QUICK CONTACT
Payment & Shipping Terms
Price Quote Negotiation
Minimum Order 10pcs
Average Delivery Time 25days
Payment Method TT, westerm union,Credit cards,Alipay
Package Details Carton or veneer case
Ability to Supply 60000pcs per month
Technical Characteristics
Products MY TEFC motor
Output Range 0.12HP-4HP
Application In industrial, water treatment fields, etc.
Standard IEC 60034-1
Phase Single-phase
Insulation Class F
Degree of Protection IP55
Service Factor 1.00
Temperature Rise 80 K
Ambient temperature -15℃≤θ≤40℃
Mounting B3/B14/B15/B34/B35
Frame Material Aluminum
Standard Bearing Brand C&U

Picture of the production line

MY SERIES Technical Data

Model Rated Output Voltage Current Full Speed Eff. @Load Power Factor Ist Break down Torque Approx. Weight
(Hp) (kW) (V) IN(A) (RPM) (%) cosΦ (A) Tst/TN Tmax/TN KG
MY561-2 0.12 0.09 230 0.75 2800 56 0.92 3 0.5 1.7 2.5
MY562-2 0.16 0.12 230 0.94 2800 60 0.92 4 0.5 1.7 3
MY631-2 0.25 0.18 230 1.31 2800 65 0.92 5 0.4 1.7 4.2
MY632-2 0.34 0.25 230 1.79 2800 66 0.92 7 0.4 1.7 4.5
MY711-2 0.5 0.37 230 2.61 2800 67 0.92 10 0.35 1.7 5.7
MY712-2 0.75 0.55 230 3.71 2800 70 0.92 15 0.35 1.7 6.7
MY801-2 1 0.75 230 4.93 2800 72 0.92 20 0.33 1.7 9.3
MY802-2 1.5 1.1 230 6.71 2800 75 0.95 30 0.33 1.7 10.6
MY90S-2 2 1.5 230 9.03 2800 76 0.95 40 0.3 1.7 13
MY90L-2 3 2.2 230 13.08 2800 77 0.95 65 0.3 1.7 16
MY100L-2 4 3 230 17.8 2800 79 0.95 92 0.3 1.7 25
MY561-4 0.08 0.06 230 0.58 1400 50 0.9 2 0.45 1.7 2.8
MY562-4 0.12 0.09 230 0.83 1400 52 0.9 3 0.45 1.7 3.4
MY631-4 0.16 0.12 230 1.01 1400 57 0.9 3.5 0.4 1.7 4
MY632-4 0.25 0.18 230 1.33 1400 59 0.9 5 0.4 1.7 4.5
MY711-4 0.34 0.25 230 1.93 1400 61 0.92 7 0.35 1.7 5.5
MY712-4 0.5 0.37 230 2.82 1400 62 0.92 10 0.35 1.7 6.5
MY801-4 0.75 0.55 230 4.07 1400 64 0.92 15 0.35 1.7 9.1
MY802-4 1 0.75 230 5.21 1400 68 0.92 20 0.32 1.7 10.4
MY90S-4 1.5 1.1 230 7.13 1400 71 0.95 30 0.32 1.7 13
MY90L-4 2 1.5 230 9.4 1400 73 0.95 40 0.3 1.7 16
MY100L1-4 3 2.2 230 13.6 1400 76 0.95 65 0.3 1.7 22
MY100L2-4 4 3 230 18 1400 77 0.95 88 0.3 1.7 29





Installation   Dimensions

Frame Size Mounting Dimensions (mm) Overall Dimensions(mm)
IMB14 IMB5
A B C D E F G H K M N P R S T M N P R S T AB AC AD HD L
56 90 71 36 9 20 3 7.2 56 5.8 65 50 80 0 M5 2.5 100 80 120 0 7 3 110 108 88 144 198
63 100 80 40 11 23 4 8.5 63 7 75 60 90 0 M5 2.5 115 95 140 0 10 3 120 119 119 182 216
71 112 90 45 14 30 5 11 71 7 85 70 105 0 M6 2.5 130 110 160 0 10 3.5 132 137 126 197 250
80 125 100 50 19 40 6 15.5 80 10 100 80 120 0 M6 3 165 130 200 0 12 3.5 160 155 149 229 278
90S 140 100 56 24 50 8 20 90 10 115 95 140 0 M8 3 165 130 200 0 12 3.5 175 172 153 243 296
90L 140 125 56 24 50 8 20 90 10 115 95 140 0 M8 3 165 130 200 0 12 3.5 175 172 153 243 352
100L 160 140 63 28 60 8 24 100 12 130 110 160 0 M8 3.5 215 180 250 0 15 4 198 194 165 265 384
