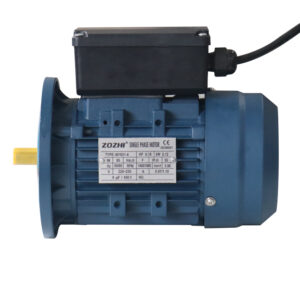

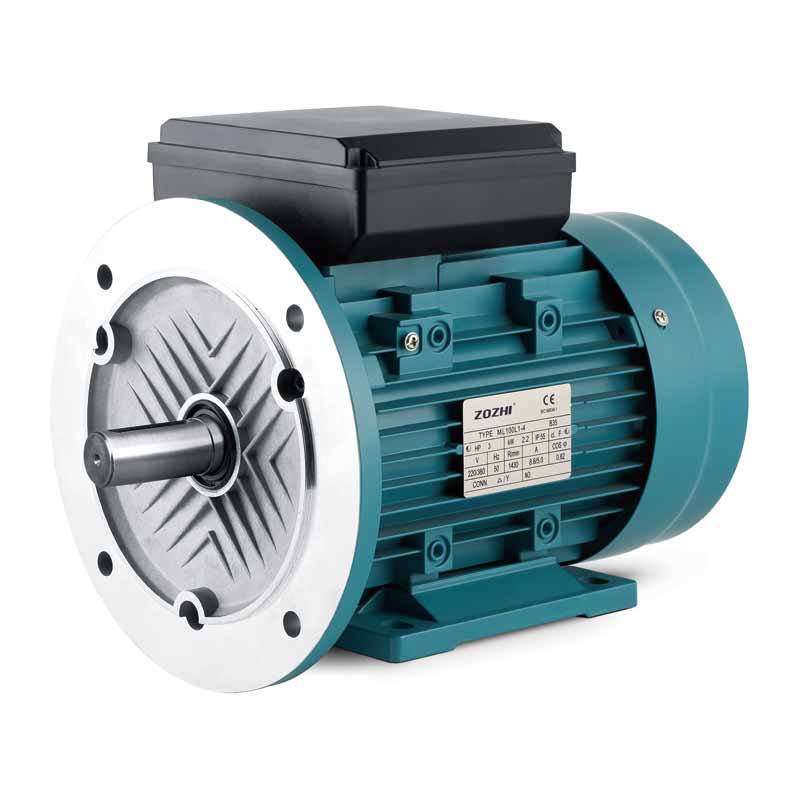

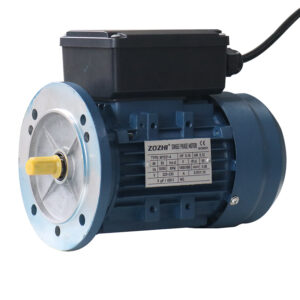

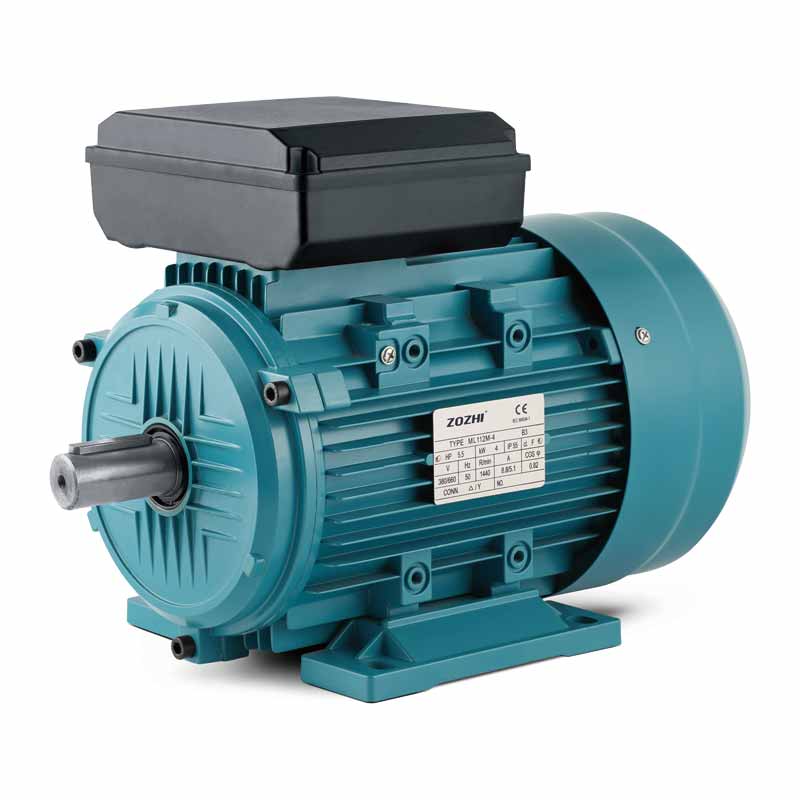

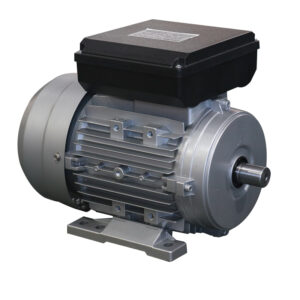

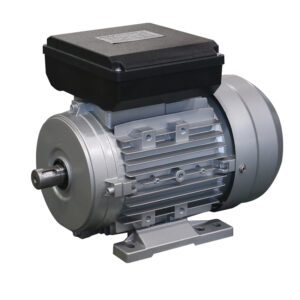

Single phase capacitor-start&Run induction motors ML Series
Single phase capacitor-start&Run induction motors ML Series
Products Details:
其他信息
| Brand | ZOZHI |
|---|---|
| Products Name | ML Series Motors |
| Country of Origin | Fujian China |
| Certification | ISO,CE,CCC |
| Payment & Shipping Terms | |
|---|---|
| Price Quote | Negotiation |
| Minimum Order | 10pcs |
| Average Delivery Time | 25days |
| Payment Method | TT, westerm union,Credit cards,Alipay |
| Package Details | Carton or veneer case |
| Ability to Supply | 60000pcs per month |
| Technical Characteristics | |
|---|---|
| Products | ML TEFC motor |
| Output Range | 0.25HP-5.5HP |
| Application | In industrial,water treatment fields ect. |
| Standard | IEC 60034-1 |
| Phase | Single phase |
| Insulation Class | F |
| Degree of Protection | IP55 |
| Service Factor | 1.00 |
| Temperature Rise | 80 K |
| Ambient temperature | -15℃≤θ≤40℃ |
| Mounting | B3/B14/B15/B34/B35 |
| Frame Material | Aluminum |
| Standard Bearing Brand | C&U |
ML series is superior motors that can be used in a multitude of applications in the commercial, industrial, building service, water treatment, and agricultural fields where superior quality and reliability are demanded.
Picture of the production line
MY SERIES Technical Data
| Model | Rated Output | Voltage | Current | Speed | Eff. @Load | Power Factor | Ist | Break down Torque | Net. Weight | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Type | (Hp) | (kW) | (V) | IN(A) | (RPM) | (%) | cosΦ | (A) | Tst/TN | Tmax/TN | kg |
| ML631-2 | 0.25 | 0.18 | 230 | 1.43 | 2800 | 60 | 0.92 | 7 | 1.8 | 1.8 | 3.9 |
| ML632-2 | 0.34 | 0.25 | 230 | 1.91 | 2800 | 63 | 0.92 | 10 | 1.8 | 1.8 | 4.3 |
| ML711-2 | 0.5 | 0.37 | 230 | 2.73 | 2800 | 67 | 0.92 | 16 | 2.3 | 1.8 | 5.8 |
| ML712-2 | 0.75 | 0.55 | 230 | 3.4 | 2800 | 73 | 0.95 | 21 | 2.5 | 1.8 | 6.8 |
| ML801-2 | 1 | 0.75 | 230 | 4.7 | 2800 | 73 | 0.95 | 30 | 2.5 | 1.8 | 9.6 |
| ML802-2 | 1.5 | 1.1 | 230 | 7.02 | 2800 | 75 | 0.95 | 40 | 2.5 | 1.8 | 11.3 |
| ML90S-2 | 2 | 1.5 | 230 | 9.44 | 2800 | 76 | 0.95 | 55 | 2.5 | 1.8 | 13 |
| ML90L-2 | 3 | 2.2 | 230 | 13.67 | 2800 | 77 | 0.95 | 70 | 2.5 | 1.8 | 16 |
| ML100L-2 | 4 | 3 | 230 | 18.2 | 2800 | 79 | 0.95 | 100 | 2.2 | 1.8 | 26 |
| ML112M-2 | 5.5 | 4 | 230 | 22.5 | 2800 | 78 | 0.95 | 120 | 1.8 | 1.8 | |
| ML631-4 | 0.16 | 0.12 | 230 | 1.24 | 1400 | 55 | 0.9 | 6 | 1.8 | 1.8 | 4.1 |
| ML632-4 | 0.25 | 0.18 | 230 | 1.43 | 1400 | 56 | 0.9 | 8 | 1.8 | 1.8 | 4.9 |
| ML711-4 | 0.34 | 0.25 | 230 | 1.99 | 1400 | 62 | 0.92 | 12 | 2.5 | 1.8 | 5.8 |
| ML712-4 | 0.5 | 0.37 | 230 | 2.81 | 1400 | 65 | 0.92 | 16 | 2.5 | 1.8 | 6.8 |
| ML801-4 | 0.75 | 0.55 | 230 | 3.6 | 1400 | 69 | 0.92 | 21 | 2.5 | 1.8 | 9.1 |
| ML802-4 | 1 | 0.75 | 230 | 5.22 | 1400 | 71 | 0.95 | 25 | 2.5 | 1.8 | 10.4 |
| ML90S-4 | 1.5 | 1.1 | 230 | 6.9 | 1400 | 72 | 0.95 | 40 | 2.5 | 1.8 | 13 |
| ML90L-4 | 2 | 1.5 | 230 | 9.3 | 1400 | 74 | 0.95 | 50 | 2.5 | 1.8 | 16 |
| ML100L1-4 | 3 | 2.2 | 230 | 13.9 | 1400 | 76 | 0.95 | 80 | 2.5 | 1.8 | 26 |
| ML100L2-4 | 4 | 3 | 230 | 17.6 | 1400 | 78 | 0.95 | 100 | 2.5 | 1.8 | 31 |
| ML112M-4 | 5.5 | 4 | 230 | 22 | 1400 | 79 | 0.95 | 130 | 2.5 | 1.8 | 35 |
Installation Dimensions
| Frame Size | Mounting Dimensions (mm) | Overall Dimensions(mm) | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IMB14 | IMB5 | |||||||||||||||||||||||||
| A | B | C | D | E | F | G | H | K | M | N | P | R | S | T | M | N | P | R | S | T | AB | AC | AD | HD | L | |
| 63 | 100 | 80 | 40 | 11 | 23 | 4 | 8.5 | 63 | 7 | 75 | 60 | 90 | 0 | M5 | 2.5 | 115 | 95 | 140 | 0 | 10 | 3 | 120 | 119 | 118 | 181 | 231 |
| 71 | 112 | 90 | 45 | 14 | 30 | 5 | 11 | 71 | 7 | 85 | 70 | 105 | 0 | M6 | 2.5 | 130 | 110 | 160 | 0 | 10 | 3.5 | 132 | 137 | 125 | 196 | 250 |
| 80 | 125 | 100 | 50 | 19 | 40 | 6 | 15.5 | 80 | 10 | 100 | 80 | 120 | 0 | M6 | 3 | 165 | 130 | 200 | 0 | 12 | 3.5 | 160 | 155 | 146 | 226 | 278 |
| 90S | 140 | 100 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | 115 | 95 | 140 | 0 | M8 | 3 | 165 | 130 | 200 | 0 | 12 | 3.5 | 175 | 172 | 151 | 241 | 322 |
| 90L | 140 | 125 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | 115 | 95 | 140 | 0 | M8 | 3 | 165 | 130 | 200 | 0 | 12 | 3.5 | 175 | 172 | 151 | 241 | 352 |
| 100L | 160 | 140 | 63 | 28 | 60 | 8 | 24 | 100 | 12 | 130 | 110 | 160 | 0 | M8 | 3.5 | 215 | 180 | 250 | 0 | 15 | 4 | 198 | 194 | 162 | 262 | 414 |
| 112M | 190 | 140 | 70 | 28 | 60 | 8 | 24 | 112 | 12 | 130 | 110 | 160 | 0 | M8 | 3.5 | 215 | 180 | 250 | 0 | 15 | 4 | 220 | 217 | 186 | 298 | 424 |
