Three phase IE1,IE2,IE3 asynchronous motor MS Series

3 phase motor

Three phase IE1,IE2,IE3 asynchronous motor MS Series

Products Details:

其他信息

BRAND

ZOZHI
PRODUCTS NAME

MS Series Motors
COUNTRY OF ORIGIN

Fujian China
CERTIFICATION

ISO,CE,CCC
QUICK CONTACT
Payment & Shipping Terms
Price Quote Negotiation
Minimum Order 10pcs
Average Delivery Time 25days
Payment Method TT, westerm union,Credit cards,Alipay
Package Details Carton or veneer case
Ability to Supply 60000pcs per month
Technical Characteristics
Products MS TEFC motor
Output Range 0.06HP-20HP
Application In industrial, water treatment fields, etc.
Standard IEC 60034-1
Phase Three-phase
Insulation Class F
Degree of Protection IP55
Service Factor 1.00
Temperature Rise 80 K
Ambient temperature -15℃≤θ≤40℃
Mounting B3/B14/B15/B34/B35
Frame Material Aluminum
Standard Bearing Brand C&U

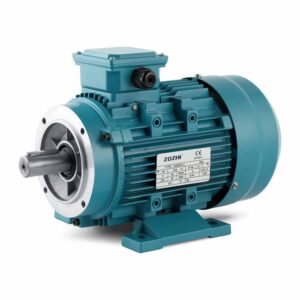

MS Series (IE1/IE2/IE3) Three-phase Asynchronous Aluminum Housing Motor

Three-phase MS(IE1/IE2/IE3) series aluminum housing motors can be used for any commercial, industrial, building service, water treatment, and agricultural fields where superior quality. And reliability is demanded.

Picture of the production line

 MS SERIES Technical Data(50Hz)

Model Rated Output Voltage Current Full Speed Eff. @Load Power Factor Ist/IN Break down Torque Approx. Weight
(Hp) (kW) (V) IN(A) (RPM) (%) cosΦ (A) Tst/TN Tmax/TN kg
MS561-2 0.12 0.09 230/400 0.55/0.32 2800 62 0.68 6 2.3 2.3 3
MS562-2 0.16 0.12 230/400 0.64/0.36 2800 67 0.71 6 2.3 2.3 3.3
MS631-2 0.25 0.18 230/400 0.87/0.51 2800 69 0.75 6 2.3 2.3 3.8
MS632-2 0.34 0.25 230/400 1.12/0.65 2800 72 0.78 6 2.3 2.3 4.5
MS711-2 0.5 0.37 230/400 1.58/0.91 2800 73.5 0.80 6 2.3 2.3 5.7
MS712-2 0.75 0.55 230/400 2.23/1.29 2800 75.5 0.82 6 2.3 2.3 6.8
MS801-2 1 0.75 230/400 2.90/1.67 2800 76.5 0.85 6 2.2 2.3 9.2
MS802-2 1.5 1.1 230/400 4.23/2.44 2800 77 0.85 7 2.2 2.3 10.3
MS90S-2 2 1.5 230/400 5.64/3.24 2800 78.5 0.85 7 2.2 2.3 12
MS90L-2 3 2.2 230/400 7.93/4.55 2800 81 0.86 7 2.0 2.3 15
MS100L-2 4 3 230/400 10.5/6.03 2870 82.6 0.87 7 2.2 2.3 22
MS112M-2 5.5 4 400/690 7.79/4.47 2890 85.5 0.87 7 2.2 2.3 28
MS132S1-2 7.5 5.5 400/690 10.5/6.10 2900 85.7 0.88 7 2.0 2.2 41
MS132S2-2 10 7.5 400/690 14.1/8.2 2900 87 0.88 7 2.0 2.2 45
MS160M1-2 15 11 400/690 20.1/11.7 2800 88.4 0.88 7 2.0 2.3 81
MS160M2-2 20 15 400/690 27.2/15.8 2800 89.4 0.88 7 2.0 2.3 92
MS160L-2 25 18.5 400/690 33.3/19.3 2800 90 0.89 7 2.0 2.2 101
MS561-4 0.08 0.06 230/400 0.47/0.27 1400 56 0.58 6 2.4 2.4 3
MS562-4 0.12 0.09 230/400 0.64/0.37 1400 58 0.61 6 2.4 2.4 3.6
MS631-4 0.16 0.12 230/400 0.80/0.46 1400 60 0.63 6 2.4 2.4 4
MS632-4 0.25 0.18 230/400 1.07/0.62 1400 64 0.66 6 2.4 2.4 4.4
MS711-4 0.34 0.25 230/400 1.38/0.79 1400 67 0.68 6 2.4 2.4 5.4
MS712-4 0.5 0.37 230/400 1.86/1.07 1400 69.5 0.72 6 2.4 2.4 6.2
MS801-4 0.75 0.55 230/400 2.57/1.49 1400 73.5 0.73 6 2.4 2.4 9
MS802-4 1 0.75 230/400 3.33/1.92 1400 75.5 0.75 6 2.3 2.4 10.5
MS90S-4 1.5 1.1 230/400 4.53/2.63 1400 78 0.78 6.5 2.3 2.4 12
MS90L-4 2 1.5 230/400 6.04/3.49 1400 79 0.79 6.5 2.3 2.4 15
MS100L1-4 3 2.2 230/400 8.23/4.78 1430 81 0.82 7 2.2 2.3 21
MS100L2-4 4 3 230/400 11.3/6.47 1430 82.6 0.81 7 2.2 2.3 26
MS112M-4 5.5 4 400/690 8.36/4.85 1440 84.5 0.82 7 2.2 2.3 31
MS132S-4 7.5 5.5 400/690 11.0/6.39 1440 85.7 0.84 7 2.2 2.3 42
MS132M-4 10 7.5 400/690 14.3/8.17 1440 87 0.85 7 2.2 2.3 54
MS160M-4 15 11 400/690 21.4/12.4 1400 88.4 0.84 7 2.2 2.3 85
MS160L-4 20 15 400/690 28.5/16.5 1400 89.4 0.85 7 2.2 2.3 99
MS711-6 0.25 0.18 230/400 1.26/0.72 900 59 0.61 5.5 2.0 2.1 6.1
MS712-6 0.34 0.25 230/400 1.61/0.92 900 63 0.62 5.5 2.0 2.1 6.6
MS801-6 0.5 0.37 230/400 2.20/1.27 900 68 0.62 5.5 2.0 2.1 8.9
MS802-6 0.75 0.55 230/400 3.00/1.8 900 71 0.64 5.5 2.0 2.1 9.9
MS90S-6 1 0.75 230/400 3.79/2.18 910 73 0.68 5.5 2.0 2.1 13
MS90L-6 1.5 1.1 230/400 5.26/3.06 910 73.5 0.72 6 2.0 2.1 15
MS100L-6 2 1.5 230/400 6.60/3.83 940 77.5 0.74 6 2.0 2.2 21
MS112M-6 3 2.2 230/400 9.28/5.36 940 80.5 0.74 6 2.0 2.2 28
MS132S-6 4 3 230/400 11.9/6.89 960 83 0.76 6.5 2.0 2.2 39
MS132M1-6 5.5 4 400/690 8.93/5.13 960 84 0.77 6.5 2.2 44
MS132M2-6 7.5 5.5 400/690 12.4/7.13 960 85.3 0.78 6.5 2.0 2.2 55
MS160M-6 10 7.5 400/690 16.4/9.50 940 86 0.78 6.5 2.0 2.0 81
MS160L-6 15 11 400/690 23.3/13.5 940 87 0.78 6.5 2.0 2.0 98
MS711-8 0.12 0.09 230/400 0.88/0.51 700 49 0.52 4.5 1.8 1.9 5.4
MS712-8 0.16 0.12 230/400 1.11/0.64 700 52 0.52 4.5 1.8 1.9 6.2
MS801-8 0.25 0.18 230/400 1.50/0.86 700 58 0.52 4.5 1.8 1.9 9.1
MS802-8 0.34 0.25 230/400 1.87/1.08 700 62 0.54 4.5 1.8 1.9 10.1
MS90S-8 0.5 0.37 230/400 2.35/1.35 700 68 0.58 4.5 1.8 1.9 12
MS90L-8 0.75 0.55 230/400 3.33/1.92 700 69 0.60 4.5 1.8 1.9 15
MS100L1-8 1 0.75 230/400 4.10/2.30 700 71 0.67 4 1.8 2.0 20
MS100L2-8 1.5 1.1 230/400 5.60/3.30 700 73 0.69 5 1.8 2.0 25
MS112M-8 2 1.5 230/400 7.50/4.30 710 75 0.69 5 1.8 2.0 29
MS132S-8 3 2.2 230/400 9.66/5.56 710 80.5 0.71 5.5 2.0 2.0 39
MS132M-8 4 3 230/400 12.7/7.37 710 82 0.72 5.5 2.0 2.0 46
MS160M1-8 5.5 4 400/690 9.79/5.65 710 84 0.73 6.0 2.0 2.0 88
MS160M2-8 7.5 5.5 400/690 12.9/7.45 710 85 0.74 6.0 2.0 2.0 96
MS160L-8 10 7.5 400/690 16.9/9.76 710 86 0.75 5.5 2.0 2.0 112

Installation Dimensions(mm)

Frame Size Mounting Dimensions (mm) Overall Dimensions
(mm)
IMB14 IMB5
A B C D E F G H K M N P R S T M N P R S T AB AC AD HD L
56 90 71 36 9 20 3 7.2 56 5.8 65 50 80 0 M5 2.5 100 80 120 0 7 3.0 110 108 100 156 198
63 100 80 40 11 23 4 8.5 63 7 75 60 90 0 M5 2.5 115 95 140 0 10 3.0 120 119 110 173 216
71 112 90 45 14 30 5 11 71 7 85 70 105 0 M6 2.5 130 110 160 0 10 3.5 132 137 117 188 250
80 125 100 50 19 40 6 15.5 80 10 100 80 120 0 M6 3.0 165 130 200 0 12 3.5 160 155 137 217 278
90S 140 100 56 24 50 8 20 90 10 115 95 140 0 M8 3.0 165 130 200 0 12 3.5 175 172 145 235 296
90L 140 125 56 24 50 8 20 90 10 115 95 140 0 M8 3.0 165 130 200 0 12 3.5 175 172 145 235 322
100L 160 140 63 28 60 8 24 100 12 130 110 160 0 M8 3.5 215 180 250 0 15 4.0 198 194 153 253 384
112M 190 140 70 28 60 8 24 112 12 130 110 160 0 M8 3.5 215 180 250 0 15 4.0 220 217 174 286 390
132S 216 140 89 38 80 10 33 132 12 165 130 200 0 M10 3.5 265 230 300 0 15 4.0 252 252 192 324 439
132M 216 178 89 38 80 10 33 132 12 165 130 200 0 M10 3.5 265 230 300 0 15 4.0 252 252 192 324 477
160M 254 210 108 42 110 12 37 160 15 215 180 250 0 M12 4.0 300 250 350 0 19 5.0 290 307 230 390 610
160L 254 254 108 42 110 12 37 160 15 215 180 250 0 M12 4.0 300 250 350 0 19 5.0 290 307 230 390 610

Table with efficiency classes: IEC 60034-30

KW HP IE1 – Standard efficiency IE2 – High efficiency IE3 – Premium efficiency
2 Pole 4 Pole 6 Pole 2 Pole 4 Pole 6 Pole 2 Pole 4 Pole 6 Pole
50Hz 60Hz 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz
0.75 1 72.1 77.0 72.1 78.0 70.0 73.0 77.4 75.5 79.6 82.5 75.9 80.0 80.7 77.0 82.5 85.5 78.9 82.5
1.1 1.5 75.0 78.5 75.0 79.0 72.9 75.0 79.6 82.5 81.4 84.0 78.1 85.5 82.7 84.0 84.1 86.5 81.0 87.5
1.5 2 77.0 81.0 77.2 81.5 75.2 77.0 81.3 84.0 82.8 84.0 79.8 86.5 84.2 85.5 85.3 86.5 82.5 88.5
2.2 3 79.7 81.5 79.7 83.0 77.7 78.5 83.2 85.5 84.3 87.5 81.8 87.5 85.9 86.5 86.7 89.5 84.3 89.5
3 4 81.5 – 81.5 – 79.7 – 84.6 – 85.5 – 83.3 – 87.1 – 87.7 – 85.6 –
3.7 5 – 84.5 – 85.0 – 83.5 – 87.5 – 87.5 – 87.5 – 88.5 – 89.5 – 89.5
4 5.5 83.1 – 83.1 – 81.4 85.8 – 86.6 – 84.6 – 88.1 – 88.6 – 86.8 –
5.5 7.5 84.7 86.0 84.7 87.0 83.1 85.0 87.0 88.5 87.7 89.5 86.0 89.5 89.2 89.5 89.6 91.7 88.0 91.0
7.5 10 86.0 87.5 86.0 87.5 84.7 86.0 88.1 89.5 88.7 89.5 87.2 89.5 90.1 90.2 90.4 91.7 89.1 91.0
11 15 87.6 87.5 87.6 88.5 86.4 89.0 89.4 90.2 89.8 91.0 88.7 90.2 91.2 91.0 91.4 92.4 90.3 91.7
15 20 88.7 88.5 88.7 89.5 87.7 89.5 90.3 90.2 90.6 91.0 89.7 90.2 91.9 91.0 92.1 93.0 91.2 91.7
18.5 25 89.3 89.5 89.3 90.5 88.6 90.2 90.9 91.0 91.2 92.4 90.4 91.7 92.4 91.7 92.6 93.6 91.7 93.0
22 30 89.9 89.5 89.9 91.0 89.2 91.0 91.3 91.0 91.6 92.4 90.9 91.7 92.7 91.7 93.0 93.6 92.2 93.0
30 40 90.7 90.2 90.7 91.7 90.2 91.7 92.0 91.7 92.3 93.0 91.7 93.0 93.3 92.4 93.6 94.1 92.9 94.1
37 50 91.2 91.5 91.2 82.4 90.8 91.7 92.5 92.4 92.7 93.0 92.2 93.0 93.7 93.0 93.9 94.5 93.3 94.1
45 60 91.7 91.7 91.7 93.0 91.4 91.7 92.9 93.0 93.1 93.6 92.7 93.6 94.0 93.6 94.2 95.0 93.7 94.5
55 75 92.1 92.4 92.1 93.0 91.9 92.1 93.2 93.0 93.5 94.1 93.1 93.6 94.3 93.6 94.6 95.4 94.1 94.5
75 100 92.7 93.0 92.7 93.2 92.6 93.0 93.8 93.6 94.0 94.5 93.7 94.1 94.7 94.1 95.0 95.4 94.6 95.0
90 125 93.0 93.0 93.0 93.2 92.9 93.0 94.1 94.5 94.2 94.5 94.0 94.1 95.0 95.0 95.2 95.4 94.9 95.0
110 150 93.3 93.0 93.3 93.5 93.3 94.1 94.3 94.5 94.5 95.0 94.3 95.0 95.2 95.0 95.4 95.8 95.1 95.8
132 180 93.5 93.5 93.5 – 93.5 – 94.6 – 94.7 – 94.6 – 95.4 – 95.6 – 95.4 –
150 200 – 94.1 – 94.5 – 94.1 – 95.0 – 95.0 – 95.0 – 95.4 – 96.2 – 95.8
160 220 93.8 93.8 93.8 – 93.8 – 94.8 – 94.9 – 94.8 – 95.6 – 95.8 – 95.6 –
185 250 – 94.1 – 94.5 – 94.1 – 95.4 – 95.4 – 95.0 – 95.8 – 96.2 – 95.8
200 275 94.0 – 94.0 – 94.0 – 95.0 – 95.1 – 95.0 – 95.8 – 96.0 – 95.8 –
220 300 94.0 94.1 94.0 94.5 94.0 94.1 95.0 95.4 95.1 95.4 95.0 95.0 95.8 95.8 96.0 96.2 95.8 95.8
250 350 94.0 94.1 94.0 94.5 94.0 94.1 95.0 95.4 95.1 95.4 95.0 95.0 95.8 95.8 96.0 96.2 95.8 95.8
300 400 94.0 94.1 94.0 94.5 94.0 94.1 95.0 95.4 95.1 95.4 95.0 95.0 95.8 95.8 96.0 96.2 95.8 95.8
330 450 94.0 94.1 94.0 94.5 94.0 94.1 95.0 95.4 95.1 95.4 95.0 95.0 95.8 95.8 96.0 96.2 95.8 95.8
375 500 94.0 94.1 94.0 94.5 94.0 94.1 95.0 95.4 95.1 95.4 95.0 95.0 95.8 95.8 96.0 96.2 95.8 95.8
