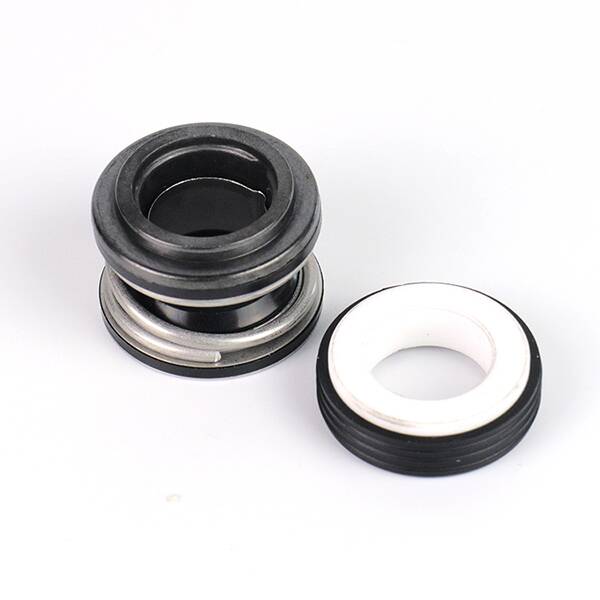

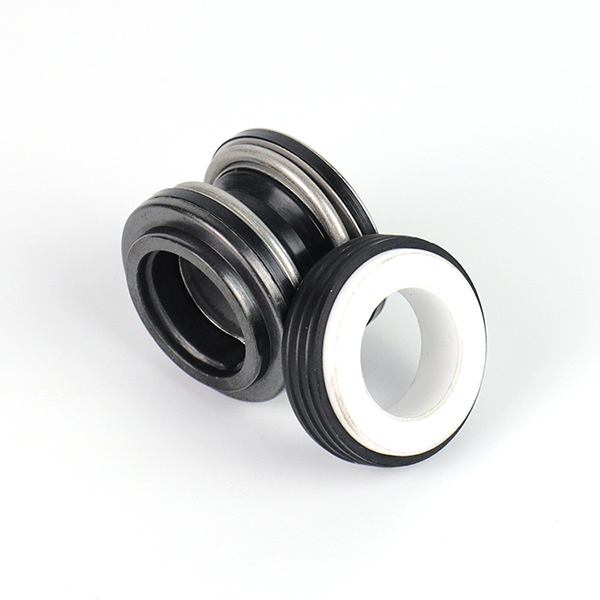

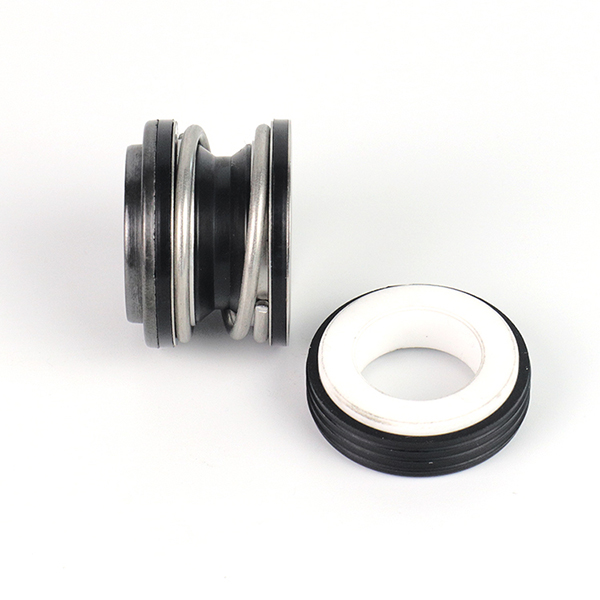

Mechanical Shaft Seal for Water Pump Motor Accessories Carbon Material ISO9001 Certified Sizes E-5/8″ and E-3/4″
Mechanical Shaft Seal for Water Pump Motor Accessories Carbon Material ISO9001 Certified Sizes E-5/8″ and E-3/4″
Products Details:
其他信息
| Brand | ZOZHI |
|---|---|
| Products Name | OPHS Series Motors |
| Country of Origin | Fujian China |
| Certification | ISO,CE,CCC |
Product Descriptiones
Operatinglimits
Temperature:-20~100℃
Pressure:≤0.7Mpa
Speeds:≤5m/sec
Medium:Average corrosive mediums,such as water,oil etc.
Application:Used in the water pumps and agitator pumps
Materials:Materials should be selected according to operation condition
Specificatione
| Product Name | Mechanical seal E series |
| Rotating ring | Carbon/Sic/TC |
| Stationary ring | Ceramic/Sic/TC |
| Auxiliary seal | NBR/Viton/EPDM |
| Spring&Other parts | SUS304/SUS316/S.S |
| Temperature | -20-100℃ |
| Pressure | ≤0.7Mpa |
| Speed | ≤5m/sec |
| Packing | Carton Box |
Overall Dimension
| Model | d1 | d3 | D7 | L1 | L3 | L4 |
| E-3/8″ | 9.53 | 24 | 22.2 | 23 | 16.7 | 6.3 |
| E-1/2″ | 12.70 | 27 | 25.4 | 26.3 | 18.3 | 8 |
| E-5/8″ | 15.88 | 31 | 31.75 | 28.6 | 18.3 | 10.3 |
| E-5/8″H | 15.88 | 31 | 31.75 | 30.1 | 19.8 | 10.3 |
| E-3/4″ | 19.05 | 34 | 34.95 | 28.6 | 18.3 | 10.3 |
| E-3/4″H | 19.05 | 34 | 34.95 | 30.1 | 19.8 | 10.3 |
| E-20 | 20.00 | 34.5 | 38 | 29.3 | 19 | 10.3 |
| E-7/8″ | 22.23 | 43 | 41.3 | 31.7 | 20.7 | 11 |
| E-1″ | 25.40 | 43 | 41.3 | 31.7 | 20.7 | 11 |
