RECS 020T 205P 220P 240P 105P 120P 140P electric centrifugal switch for electric motor with CE

Products Details:

其他信息

Brand

ZOZHI

Products Name

Electric centrifugal switch

Country of Origin

Fujian China

Certification

ISO,CE,CCC

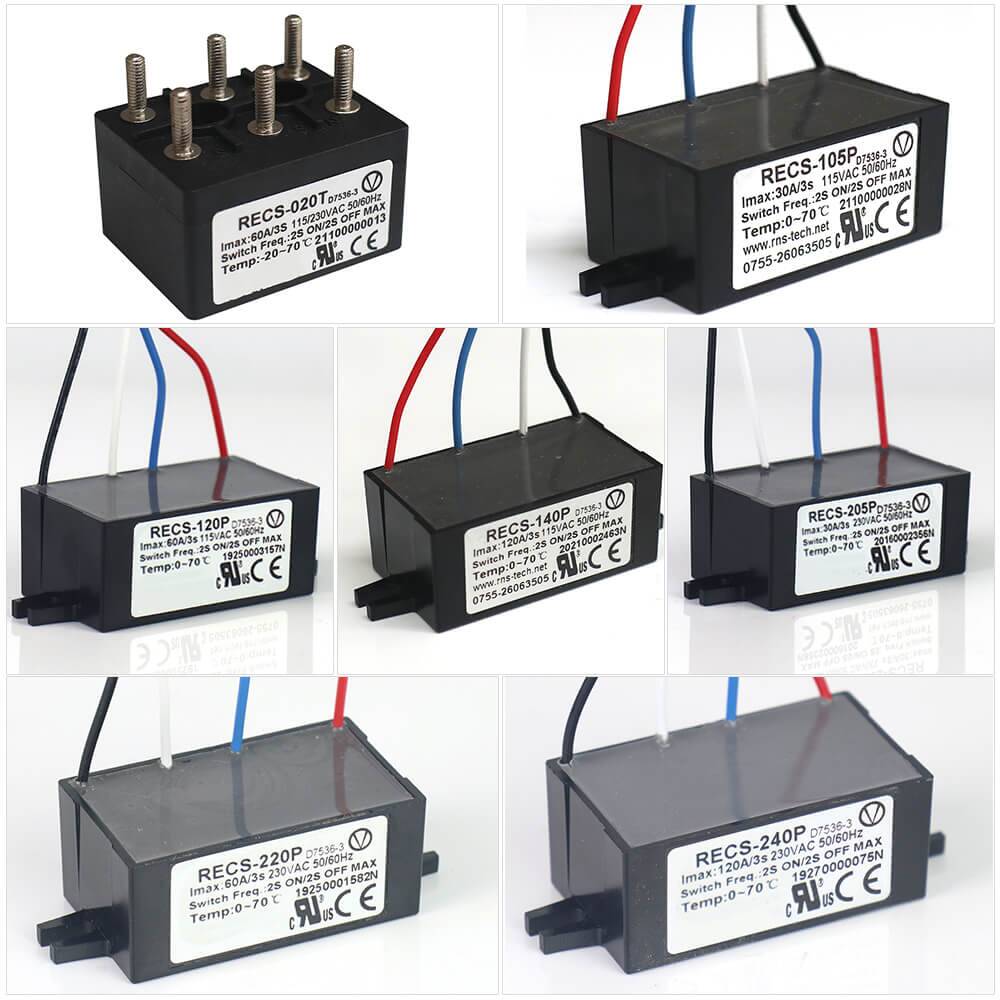

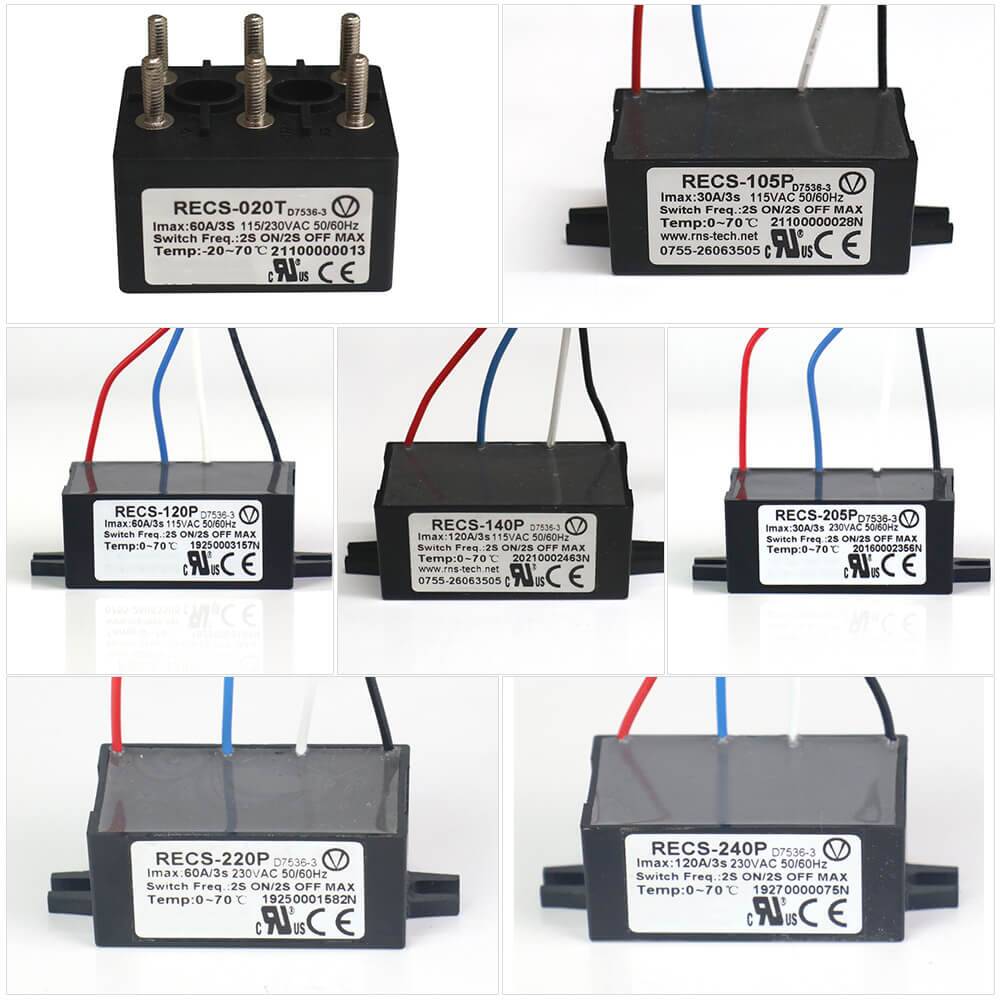

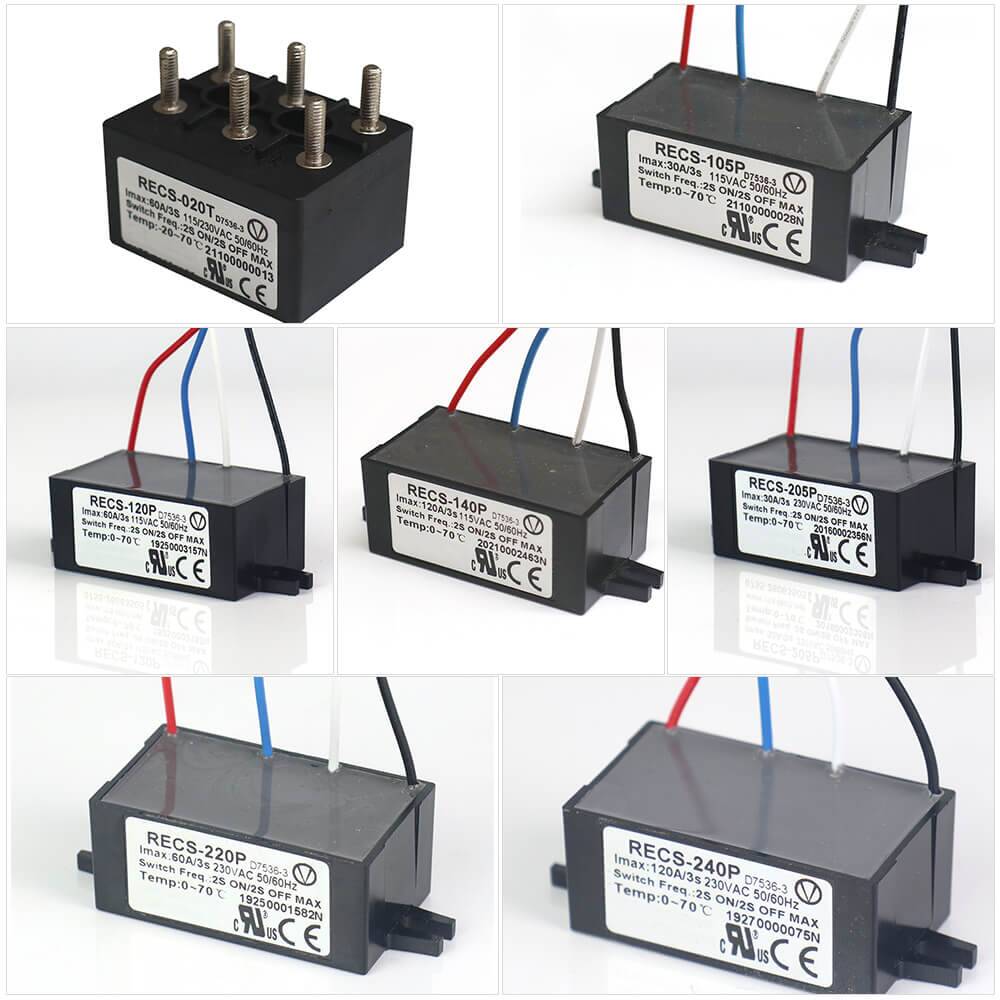

RECS 020T 205P 220P 240P 105P 120P 140P electric centrifugal switch for electric motor with CE

Item   No.: RECS 020T 205P 220P 240P 105P 120P 140P
Commodity: Electric centrifugal switch
Application: For single-phase electric motor
Power: 30A 60A 120A
Voltage: 110-240v
Frequency: 50/60hz
Packing: CTNS
Warranty: One Year

Electric centrifugal switch Advantage

Working principle: The electronic centrifugal switch determines the starting speed of the motor by sampling the current, voltage, phase, and other parameters of the motor. If the motor speed reaches 72%~83% of the rated speed, the starter will be cut off to achieve the purpose of starting the motor.

Application

At present, RECS series electronic centrifugal switches have been widely used in water treatment, food machinery, building materials machinery, vacuum pumps, explosion-proof motors, high-pressure cleaners, air compressors, woodworking machinery, stone machinery, oil pumps, washing machines, dryers, medical equipment, Ordinary motor, and other industries.

 Factory Picture

Description

 Electronic centrifugal switch
Product model:RECS-205P
Motor voltage:160V-264Vac 50Hz/60Hz
Motor power:0 - 550W
Maximum current:30A /3S
Applicable models:Single-phase AC motors of YL, YC, ML, and MC series
Product model:RECS-220P
Motor voltage:160V-264Vac 50Hz/60Hz
Motorpower:600W-2000W
Maximum current:60A/3S
Applicable models:Single-phase AC motors of YL, YC, ML, and MC series
Product model:RECS-240P
Motor voltage:160V-264Vac 50Hz/60Hz
Motor power:2200W - 4300W
Maximum current:120A/3S
Applicable models:Single-phase AC motors of YL, YC, ML, and MC series
Product model: RECS-105P
Motor voltage:85V-132Vac 50Hz/60Hz
Motor power:0 - 300W
Maximum current:30A /3S
Applicable models:Single-phase AC motors of YL, YC, ML, and MC series
Product model:RECS-120P
Motor voltage:85V-132Vac 50Hz/60Hz
Motorpower:350 - 1000W
Maximum current:60A/3S
Applicable models:Single-phase AC motors of YL, YC, ML, and MC series
Product model: RECS-140P
Motor voltage:85V-132Vac50Hz/60Hz
Motor power:1100W- 2000W
Maximum current:120A/3S
Applicable models:Single-phase AC motors of YL, YC, ML, and MC series
