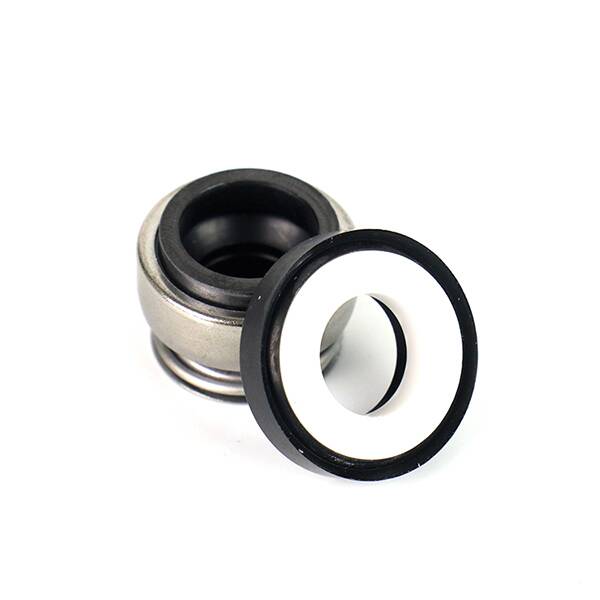

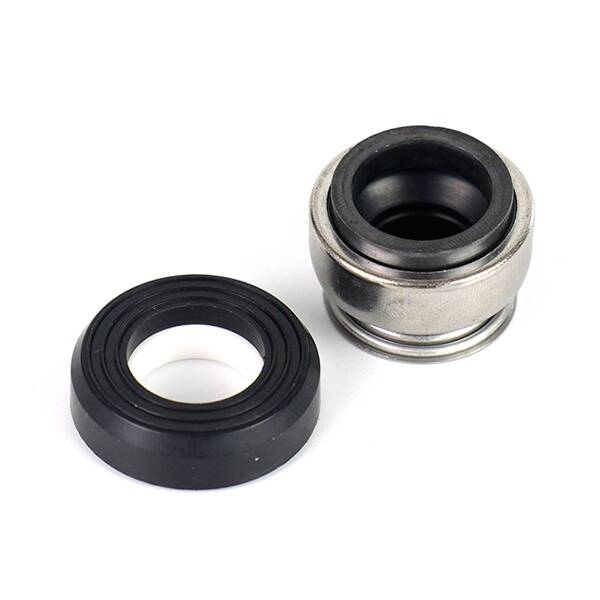

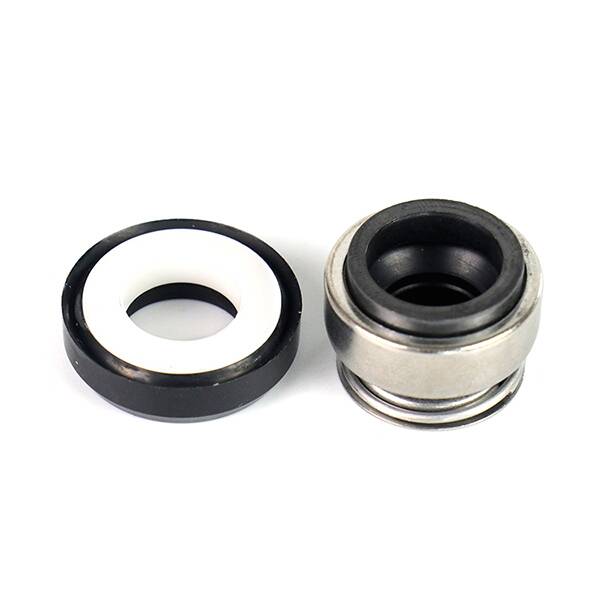

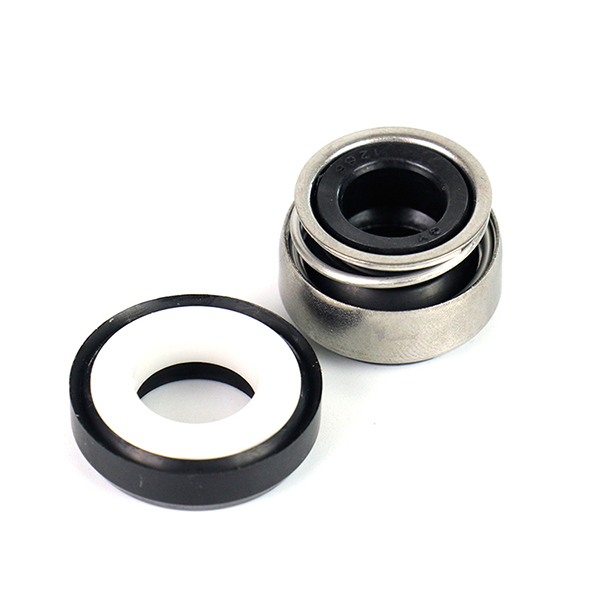

Motor Accessories 301-12 Mechanical Seal with Rubber Bellow Essential for Effective Motor Function
Motor Accessories 301-12 Mechanical Seal with Rubber Bellow Essential for Effective Motor Function
Products Details:
其他信息
| Brand | ZOZHI |
|---|---|
| Products Name | OPHS Series Motors |
| Country of Origin | Fujian China |
| Certification | ISO,CE,CCC |
Product Descriptiones
Operating limits
– Pressure: ≤ 0.5MPa
– Temperature: -20~100℃
– Speeds: ≤10m/sec
Applications
Used in water pumps, circulation pumps.
Materials(to DIN24960)
– Rotating Ring: Carbon, Sic, TC
– Stationary Ring: Ceramic, Sic, TC
– Auxiliary seal: NBR, Viton, EPDM
– Spring and Other Parts: SUS304, SUS316, S.S
Materials should be selected accroding to operation condition.
Medium
Average corrosive mediums, such as water, oil ect.
Specificatione
|
Product Name
|
Mechanical seal 155 series
|
|
Rotating ring
|
Carbon/Sic/TC
|
|
Stationary ring
|
Ceramic/Sic/TC
|
|
Auxiliary seal
|
NBR/Viton/EPDM
|
|
Spring&Other parts
|
SUS304/SUS316/S.S
|
|
Temperature
|
-20-100℃
|
|
Pressure
|
≤0.7Mpa
|
|
Speed
|
≤10m/sec
|
|
Packing
|
Carton Box
|
Overall Dimension
|
Model
|
d1
|
d3
|
D7
|
L1
|
L3
|
L4
|
|
ZZ 301-6
|
6
|
18
|
22
|
15
|
11
|
4
|
|
ZZ 301-8
|
8
|
18
|
22
|
15
|
11
|
4
|
|
ZZ 301-8L
|
8
|
24
|
26
|
19
|
11
|
8
|
|
ZZ 301-9
|
9
|
24
|
26
|
21
|
13
|
8
|
|
ZZ 301-10
|
10
|
24
|
26
|
21
|
13
|
8
|
|
ZZ 301-11
|
11
|
24
|
26
|
21
|
13
|
8
|
|
ZZ 301-12
|
12
|
24
|
26
|
21
|
13
|
8
|
|
ZZ 301-13
|
13
|
24
|
26
|
18.5
|
13
|
8/5.5
|
|
ZZ 301-14P
|
14
|
27.5
|
28/28.5
|
21
|
13
|
8
|
|
ZZ 301-14
|
14
|
32
|
29.5
|
21
|
13/13.5
|
7.5/8
|
|
ZZ 301-15P
|
15
|
27.5
|
30
|
21
|
13
|
8
|
|
ZZ 301-15
|
15
|
32
|
29.5
|
21
|
13/13.5
|
7.5/8
|
|
ZZ 301-16P
|
16
|
27.5
|
30
|
21
|
13
|
8
|
|
ZZ 301-16
|
16
|
32
|
29.5
|
21
|
13/13.5
|
7.5/8
|
|
ZZ 301-16L
|
16
|
39
|
38/42
|
21
|
13
|
8
|
|
ZZ 301-17
|
17
|
39
|
42
|
21
|
13
|
8
|
|
ZZ 301-18
|
18
|
39
|
42
|
21
|
13
|
8
|
|
ZZ 301-19
|
19
|
39
|
42
|
21
|
13
|
8
|
|
ZZ 301-20P
|
20
|
35
|
38
|
21
|
13
|
8
|
|
ZZ 301-20
|
20
|
39
|
42
|
21
|
13
|
8
|
|
ZZ 301-20L
|
20
|
42
|
45
|
23
|
13
|
10
|
|
ZZ 301-22P
|
22
|
39
|
42
|
21
|
13
|
8
|
|
ZZ 301-22
|
22
|
42
|
45
|
23
|
13
|
10
|
|
ZZ 301-23
|
23
|
47
|
50
|
23.5
|
13.5
|
10
|
|
ZZ 301-24
|
24
|
47
|
50
|
23.5
|
13.5
|
10
|
|
ZZ 301-25P
|
25
|
42
|
45
|
23
|
13
|
10
|
|
ZZ 301-25
|
25
|
47
|
50
|
23.5
|
13.5
|
10
|
|
ZZ 301-26
|
26
|
47
|
50
|
23.5
|
13.5
|
10
|
|
ZZ 301-27
|
27
|
47
|
50
|
23.5
|
13.5
|
10
|
|
ZZ 301-28
|
28
|
54
|
57
|
25
|
15
|
10
|
|
ZZ 301-30
|
30
|
54
|
57
|
25
|
15
|
10
|
|
ZZ 301-32
|
32
|
54
|
57
|
25
|
15
|
10
|
|
ZZ 301-35
|
35
|
60
|
63
|
26
|
16
|
10
|
|
ZZ 301-38
|
38
|
65
|
68
|
30
|
18
|
12
|
|
ZZ 301-40
|
40
|
65
|
68
|
30
|
18
|
12
|
|
ZZ 301-45
|
45
|
70
|
73
|
32
|
20
|
12
|
|
ZZ 301-50
|
50
|
85
|
88
|
38
|
23
|
15
|
|
ZZ 301-55
|
55
|
85
|
88
|
38
|
23
|
15
|
|
ZZ 301-60
|
60
|
105
|
110
|
45
|
30
|
15
|
|
ZZ 301-65
|
65
|
105
|
110
|
45
|
30
|
15
|
|
ZZ 301-70
|
70
|
105
|
110
|
47
|
32
|
15
|
